Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.6 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 112.896×84.672 Mm | Outline: | 126.5×100×6 Mm |
| High Light: | tft lcd display,innolux lcd screen |
||

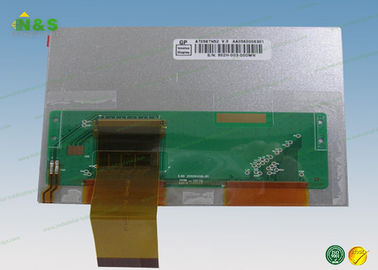

AT056TN52 V.3 5.6 inch 200 Innolux LCD Panel , Antiglare digital camera lcd screen
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
AT056TN52 V.3 DETAIL
| Panel Size : | 5.6 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 143 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0588×0.1764 mm (H×V) |
| Pixel Pitch : | 0.1764×0.1764 mm (H×V) |
| Weight : | 127.5g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 112.896×84.672 mm (H×V) |
| Bezel Area : | 115.70×87.47 mm (H×V) |
| Outline Dimension : | 126.5×100 mm (H×V) |
| Outline Depth : | 5.7±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V546HK3-PS5 Rev.C1 | Innolux | 55" | 1920×1080 |
| V216B1-PN1 | Innolux | 21.6" | 1366×768 |
| M190A1-P01 | Innolux | 19.0" | 1440×900 |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
