TX26D11VM1CAA koe industrial application tft lcd display 10.4 inch 640×480

Certification
China N&S ELECTRONIC CO., LIMITED certification
China N&S ELECTRONIC CO., LIMITED certification
Customer Reviews
We've come back full of excellent memories, N&S is a very good organisation. Really expert for LCDs.

—— Andy

We'd like to praise the service we received from this company who faultlessly organised our LCD panel supply line.

—— M. H. Thatcher

If I plan another LCD panel order I shan't hesitate to contact you again.

—— Alejandro

I'm Online Chat Now

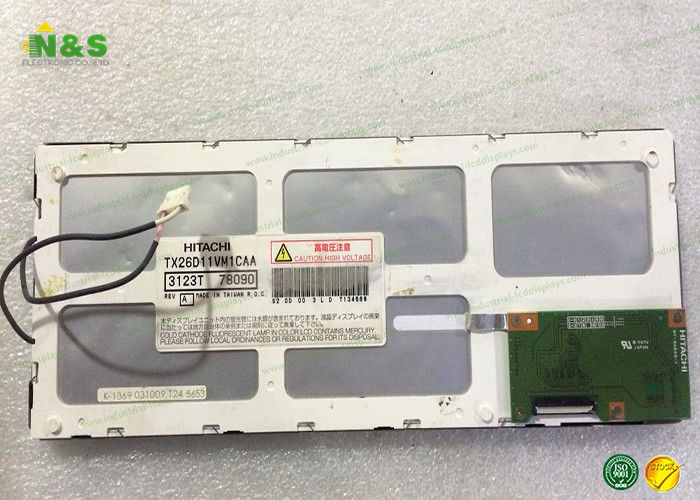

TX26D11VM1CAA koe industrial application tft lcd display 10.4 inch 640×480

TX26D11VM1CAA koe industrial application tft lcd display 10.4 inch 640×480
TX26D11VM1CAA koe industrial application tft lcd display 10.4 inch 640×480

Large Image :  TX26D11VM1CAA koe industrial application tft lcd display 10.4 inch 640×480

Product Details:
Place of Origin: KOREA
Brand Name: KOE
Certification: ISO9001
Model Number: TX26D11VM1CAA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY

TX26D11VM1CAA koe industrial application tft lcd display 10.4 inch 640×480

Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 10.4 Inch
Resolution: 640(RGB)×480 , VGA Display Mode: TN, Normally White, Transmissive
Active Area: 211.2×158.4 Mm Outline: 243×181.6×12.5 Mm
High Light:

small lcd panel

,

digital lcd display

TX26D11VM1CAA koe industrial application tft lcd display 10.4 inch 640×480



Panel Size : 10.4 inch
Dot Resolution : 640(RGB)×480 (VGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 76 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110×0.330 mm (H×V)
Pixel Pitch : 0.330×0.330 mm (H×V)
Weight : 530g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 215.4×162.6 mm (H×V)
Outline Dimension : 243×181.6 mm (H×V)
Outline Depth : 12.5 (Max.) mm
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75)
Landscape or Portrait : Landscape type
Touch Panel : Without



Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 300 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 30/20 (Typ.)(Tr/Td)
Viewing Angle : 65/65/65/65 (Typ.)(CR≥5) (L/R/U/D)
White color Chromaticity : Wx:0.320; Wy:0.330
White Variation : 1.67 (Max.)(5 points)
Sunlight Readable : N



We Can Do for You:

1) One-to-one service with efficient & professional support;

2) Protection of your design and all your private information;

3) We could supply different hard disk for you.

4) Quality stability, can to provide certification of products;

5) Convenient payment methods: PayPal, T/T and Western Union;

6) Speedy shipment: we could arrange the shipment within 1-3 business days.

7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.



Competitive Advantage:

1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!



Below are our other LCD panels stock for your easy reference:

SP24V01L0ALZZ KOE 9.4" 640×480
SP14N02L6ALCZ KOE 5.1" 240×128
SP12N01L6ALCZ KOE 4.8" 256×64
SP24V001-A KOE 9.4" 640×480
SP10Q010-T KOE 3.8" 320×240

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
