Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.1 Inch |
|---|---|---|---|
| Resolution: | 240×128 | Display Mode: | TN, Blue Mode |
| Active Area: | 119.97×63.97 Mm | Outline: | 159.4×101×11 Mm |
| High Light: | anti glare lcd screen,small lcd panel |
||

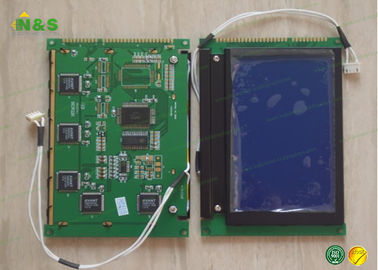

5.1 inch LMG7410PLFC KOE LCD Display KOE 240×128 80 with 19.97×63.97 mm
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SP24V01L0ALZZ | KOE | 9.4" | 640×480 |
| SP14N02L6ALCZ | KOE | 5.1" | 240×128 |
| SP12N01L6ALCZ | KOE | 4.8" | 256×64 |
| SP24V001-A | KOE | 9.4" | 640×480 |
| SP10Q010-T | KOE | 3.8" | 320×240 |
| SP10Q010-ZZA | KOE | 3.8" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LMG7410PLFC Information
| Panel Size : | 5.1 inch |
| Dot Resolution : | 240×128 |
| Pixel Configuration : | Rectangle |
| Pixel Density : | 50 PPI |
| Aspect Ratio : | 17:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.50×0.50 mm (H×V) |
| Pixel Pitch : | 0.50×0.50 mm (H×V) |
| Weight : | 180g |
| Active Area : | 119.97×63.97 mm (H×V) |
| Bezel Area : | 124.0×70.0 mm (H×V) |
| Outline Dimension : | 159.4×101 mm (H×V) |
| Outline Depth : | 11.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.0) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | STN, Blue mode |
| Brightness : | 80 cd/m² (Typ.) |
| Contrast Ratio : | 18 : 1 (Typ.) (Transmissive) |
| Display Color : | Monochrome () |
| Response Time : | 160/110 (Typ.)(Tr/Td) |
| Viewing Angle : | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Sunlight Readable : | N |
