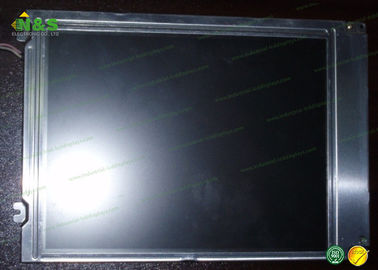

8.4 Inch T -55466D084J-LW-A-AAN KOE LCD Display , TFT LCD Module Kyocera

8.4 Inch T -55466D084J-LW-A-AAN KOE LCD Display , TFT LCD Module Kyocera

8.4 Inch T -55466D084J-LW-A-AAN KOE LCD Display , TFT LCD Module Kyocera

Product Details:

Place of Origin: KOREA
Brand Name: Kyocera
Certification: ISO9001
Model Number: T-55466D084J-LW-A-AAN

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: Western Union, T/T, MoneyGram, T/T
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Type: A-Si TFT-LCD , LCM Panel Size: 8.4 Inch
Resolution: 800(RGB)×600 , SVGA Display Mode: TN, Normally White, Transmissive
Active Area: 170.4×127.8 Mm Outline: 199.5×149 Mm

8.4 inch T-55466D084J-LW-A-AAN TFT LCD Module Kyocera with 170.4×127.8 mm Active Area

T-55466D084J-LW-A-AAN   Information



Panel Size : 8.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 119 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.071×0.213 mm (H×V)
Pixel Pitch : 0.213×0.213 mm (H×V)
Weight : 365g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 170.4×127.8 mm (H×V)
Bezel Area : 174.9×132.2 mm (H×V)
Outline Dimension : 199.5×149 mm (H×V)
Outline Depth : 11.5 (Typ.) mm
Holes & Brackets : Face mounting holes (4-Φ3.4), Side mounting holes (4-M2)
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : TN, Normally White, Transmissive
Brightness : 600 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut : 40% NTSC (CIE1931)
Response Time : 4/12 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.30 (Max.)(5 points)
Sunlight Readable : N


Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.

FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
F-55472GNFQJ-LW-ABN Kyocera 2.8" 128×64
F-55472GNFQJ-LG-ADN Kyocera 2.8" 128×64
F-55472GNFQJ-LB-AEN Kyocera 2.8" 128×64
F-55472GNFJ-SLW-AHN Kyocera 2.8" 128×64
F-55472GNFJ-SLW-AFN Kyocera 2.8" 128×64
F-55472GNFJ-SLW-AAN Kyocera 2.8" 128×64
F-55472GNBJ-LW-AIN Kyocera 2.8" 128×64
