Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Active Area: | 116.16×87.12 Mm | Outline: | 135×104.6×10.9 Mm |
| High Light: | nec lcd touch screen,nec tft lcd |
||
Normally White NL6448BC18-03F 5.7 inch NEC LCD Panel with 116.16×87.12 mm
NL6448BC18-03F Information
| Panel Size : | 5.7 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 139 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0605×0.1815 mm (H×V) |
| Pixel Pitch : | 0.1815×0.1815 mm (H×V) |
| Weight : | 165/175g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 116.16×87.12 mm (H×V) |
| Bezel Area : | 120.2×91.2 mm (H×V) |
| Outline Dimension : | 135×104.6 mm (H×V) |
| Outline Depth : | 10.4±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape / Portrait |
| Touch Panel : | Without |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
| EN133UT1 | E Ink | 13.3" | 1600×1200 |
| ED047TC1 | E Ink | 4.7" | 540×960 |
| ED133UT1 | E Ink | 13.3" | 1600×1200 |
| ES133UT1 | E Ink | 13.3" | 1600×1200 |
| ED060SCQ | E Ink | 6.0" | 600×800 |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 800 cd/m² (Typ.) |
| Contrast Ratio : | 850 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 3/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 9 o'clock |
| White color Chromaticity : | Wx:0.300; Wy:0.350 |
| White Variation : | 1.25/1.40 (Typ./Max.)(5 points) |
| Sunlight Readable : | Y |
Our Company Strength in LCD Screen Sourcing:

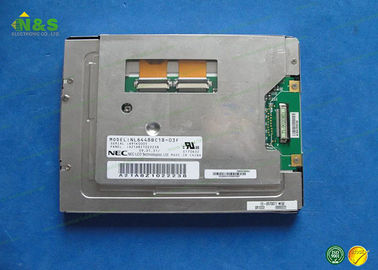

NL6448BC18-03F Picture
