Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 152.4×91.44 Mm | Outline: | 165×106×10.5 Mm |
| High Light: | small lcd panel,digital lcd display |
||

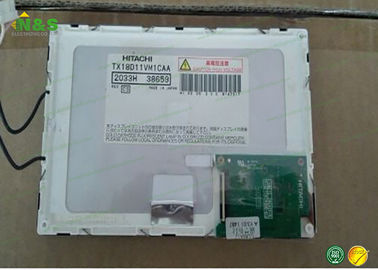

7.0 inch TX18D11VM1CAA KOE LCD Display KOE LCM 800×480 400 Normally White
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SP24V01L0ALZZ | KOE | 9.4" | 640×480 |
| SP14N02L6ALCZ | KOE | 5.1" | 240×128 |
| SP12N01L6ALCZ | KOE | 4.8" | 256×64 |
| SP24V001-A | KOE | 9.4" | 640×480 |
| SP10Q010-T | KOE | 3.8" | 320×240 |
| SP10Q010-ZZA | KOE | 3.8" | 320×240 |
| SP10Q010-TZA | KOE | 3.8" | 320×240 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
TX18D11VM1CAA Information
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 170g (Typ.) |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 156.4×95.44 mm (H×V) |
| Outline Dimension : | 165×106 mm (H×V) |
| Outline Depth : | 10.5 (Max.) mm |
| Holes & Brackets : | Rear mounting holes (4 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 200 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/45/60 (Typ.)(CR≥5) (L/R/U/D) |
| White color Chromaticity : | Wx:0.310; Wy:0.320 |
| White Variation : | 1.43 (Max.)(5 points) |
| Sunlight Readable : | N |
