Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Active Area: | 211.2×158.4 Mm | Outline: | 243×179×8 Mm |
| High Light: | nec lcd touch screen,nec tft lcd |
||
NL6448AC33-13 NEC LCD Panel 10.4 inch LCM 640×480 70 150:1 262K CCFL TTL
NL6448AC33-13 Detail
| Panel Size : | 10.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 385g (Typ.) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 243×179 mm (H×V) |
| Outline Depth : | 8.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75×5.3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED097TC1 | E Ink | 9.7" | 1200×825 |
| ET047TC1 | E Ink | 4.7" | 540×960 |
| ET040TC1 | E Ink | 4.0" | 480×720 |
| ED043WH1 | E Ink | 4.3" | 480×800 |
| ED043WC1 | E Ink | 4.3" | 480×800 |
| ED043WC3 | E Ink | 4.3" | 480×800 |
| ED060XD6 | E Ink | 6.0" | 758×1024 |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 70 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 42% NTSC (CIE1931) |
| Response Time : | 40 (Max.)(Tr) |
| Viewing Angle : | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Sunlight Readable : | N |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day

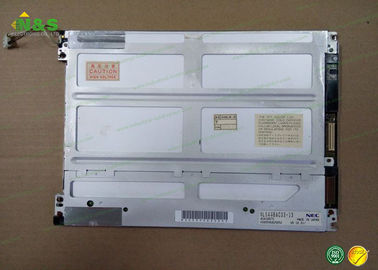

NL6448AC33-13 Picture
