Product Details:
|
| Contrast Ratio: | 600:1 (Typ.)(Transmissive) 5.5:1 (Typ.)(Reflective) | Panel Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 480(RGB)×640 , VGA | Display Mode: | Buenaview, Normally Black, Transflective |
| Frequency: | 60Hz | Signal Interface: | 3.0/1.8V (Typ.)(VDD/VCCIO) |
| High Light: | tft lcd display,lcd display panel |
||
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
| Panel Size : | 3.5 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 228 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.037×0.111 mm (H×V) |
| Pixel Pitch : | 0.111×0.111 mm (H×V) |
| Weight : | 42.3g |
| Surface : | Hard coating (3H) |
| Active Area : | 53.28×71.04 mm (H×V) |
| Bezel Area : | 57.44×75.32 mm (H×V) |
| Outline Dimension : | 63.5×85 mm (H×V) |
| Outline Depth : | 4.33/5.83 (Typ./Max.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
<
| Display Mode : | Buenaview, Normally Black, Transflective |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 5.5:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 40/60 (Max.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White Variation : | 1.43 (Max.)(9 points) |
| Sunlight Readable : | Y |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AE060RN01 | Innolux | 6.0" | 800×600 |
| F050A12-601 | Innolux | 5.0" | 480×854 |
| 85C02502-Y21 | Innolux | 2.5" | 320×240 |
| V260B2-P03 Rev.C2 | Innolux | 26.0" | 1366×768 |
| G070YG1-P01 | Innolux | 7.0" | 800×480 |
| F03215-01Z | Innolux | 3.2" | 360×480 |
| F0352A-01U | Innolux | 3.5" | 320×480 |
| F07020-01D | Innolux | 7.0" | 480×234 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

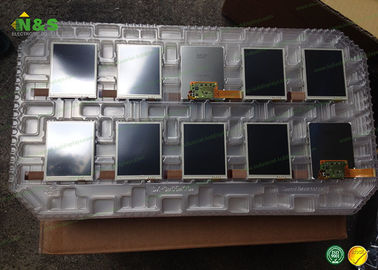

COM35H3M74UTC Picture
