Product Details:
|
| Contrast Ratio: | 500:1 (Typ.) | Panel Size: | 13.3 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 , WXGA | Display Mode: | TN, Normally White, Transmissive |
| Frequency: | 60Hz | Signal Interface: | LVDS (1 Ch, 6-bit) , 20 Pins |
| High Light: | lcd display panel,innolux lcd screen |
||
| Panel Size : | 13.3 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Weight : | 450/465g (Typ./Max.) |
| Surface : | Antiglare (Haze 25%) |
| Active Area : | 286.08×178.8 mm (H×V) |
| Bezel Area : | 289.1×181.8 mm (H×V) |
| Outline Dimension : | 304.6×195 mm (H×V) |
| Outline Depth : | 7.7/8.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (6-M2) on left, right bezel; Face mounting holes (3 pcs) on left, right slugs |
| Landscape or Portrait : |
Landscape type
|
| Touch Panel : | Without |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 6/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.45 (Max.)(5 points) |
| Sunlight Readable : | N |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |

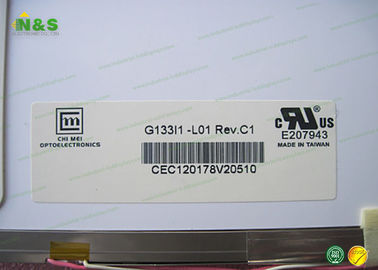

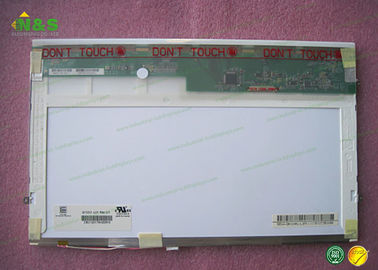

G133I1-L01 Picture
