Product Details:
|
| Contrast Ratio: | 800:1 (Typ.) | Panel Size: | 8.0 Inch |
|---|---|---|---|
| Resolution: | 1024(RGB)×768 , XGA | Surface: | Hard Coating |
| Frequency: | 60Hz | Signal Interface: | LVDS (1 Ch, 6/8-bit) , 40 Pins |
| High Light: | tft lcd display,lcd display panel |
||
HJ080IA-01B CHIMEI INNOLUX 8.0 inch with 162.048×121.536 mm
| Panel Size : | 8.0 inch | |
| Dot Resolution : | 1024(RGB)×768 (XGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 160 PPI | |
| Aspect Ratio : | 4:3 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.05275×0.15825 mm (H×V) | |
| Pixel Pitch : | 0.15825×0.15825 mm (H×V) | |
| Weight : | 120g | |
| Surface : |
|
|
| Active Area : | 162.048×121.536 mm (H×V) | |
| Outline Dimension : | 174×136 mm (H×V) | |
| Outline Depth : | 2.60±0.30 mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
| Display Mode : |
|
|
| Brightness : | 350 cd/m² (Typ.) | |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) | |
| Display Color : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) | |
| Color Gamut : | 50% NTSC (CIE1931) | |
| Response Time : | 25 (Typ.)(Tr+Td) | |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
|
|
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AE060RN01 | Innolux | 6.0" | 800×600 |
| F050A12-601 | Innolux | 5.0" | 480×854 |
| 85C02502-Y21 | Innolux | 2.5" | 320×240 |
| V260B2-P03 Rev.C2 | Innolux | 26.0" | 1366×768 |
| G070YG1-P01 | Innolux | 7.0" | 800×480 |
| F03215-01Z | Innolux | 3.2" | 360×480 |
| F0352A-01U | Innolux | 3.5" | 320×480 |
| F07020-01D | Innolux | 7.0" | 480×234 |
| HB101NA-01C | Innolux | 10.1" | 1280×800 |
| BP059IA-01A | Innolux | 5.9" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.

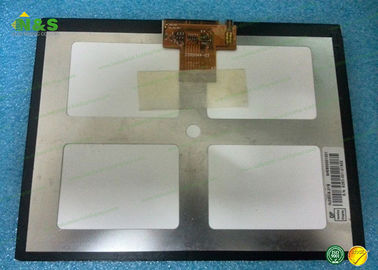

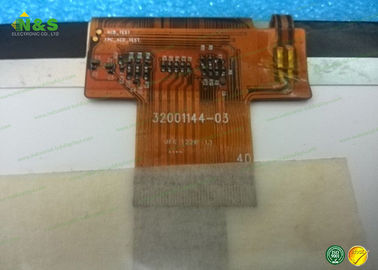

HJ080IA-01B Picture
