Product Details:
|
| Contrast Ratio: | 800:1 (Typ.) | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 1280(RGB)×800 , WXGA | Surface: | Glare (Haze 0%), Hard Coating (3H) |
| Frequency: | 60Hz | Signal Interface: | LVDS (1 Ch, 8-bit) , 40 Pins |
| High Light: | tft lcd display,lcd display panel |
||
HB140WX1-50 7.0 inch Back to Top Totally 10 models 280×800, 8-bit, LVDS, 2D, WLED, Flat,
| Panel Size : | 7.0 inch | |
| Dot Resolution : | 1280(RGB)×800 (WXGA) | |
| Pixel Configuration : | RGB Vertical Stripe | |
| Pixel Density : | 217 PPI | |
| Aspect Ratio : | 16:10 (H:V) | |
| Form Factor : | Flat Rectangle Display | |
| Dot Pitch : | 0.039×0.117 mm (H×V) | |
| Pixel Pitch : | 0.117×0.117 mm (H×V) | |
| Weight : | TBD | |
| Surface : |
|
|
| Active Area : | 149.76×93.6 mm (H×V) | |
| Bezel Area : | 151.7×95.6 mm (H×V) | |
| Outline Dimension : | 161.2×107.2 mm (H×V) | |
| Outline Depth : | 2.5/4.5 (Typ./Max.) mm | |
| Holes & Brackets : | Without | |
| Landscape or Portrait : | Landscape type | |
| Touch Panel : | Without |
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
| Display Mode : |
|
|
| Brightness : | 350 cd/m² (Typ.) | |
| Contrast Ratio : | 800 : 1 (Typ.) (Transmissive) | |
| Display Color : | 16.7M (8-bit) | |
| Response Time : | 15/20 (Typ.)(Tr/Td) | |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) | |
| Viewing Direction : | Symmetry | |
| White color Chromaticity : |
|
|
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) | |
| Sunlight Readable : | N |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
| CG043JN16 | Innolux | 4.3" | 480×800 |
| F04008-01U | Innolux | 4.0" | 480×800 |
| N156BGE-P21 | Innolux | 15.6" | 1366×768 |

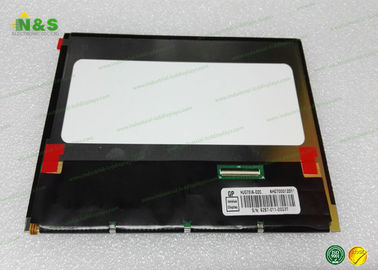

HJ070IA-02C Picture
