Product Details:
|
| Panel Size: | 9.4 Inch | Panel Brand: | NEC |
|---|---|---|---|
| Active Area: | 192×144 Mm | Resolution: | 640(RGB)×480 , VGA |
| High Light: | nec lcd touch screen,nec lcd screen |
||
NL6448AC30-12 NEC LCD Panel 9.4 inch LCM 640×480 70 150:1 4096 CCFL TTL
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
NL6448AC30-12 Specification
| Panel Size : | 9.4 inch |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 84 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.10×0.30 mm (H×V) |
| Pixel Pitch : | 0.30×0.30 mm (H×V) |
| Weight : | 480/500g (Typ./Max.) |
| Active Area : | 192×144 mm (H×V) |
| Bezel Area : | 202.1×152.2 mm (H×V) |
| Outline Dimension : | 241.8×178.8 mm (H×V) |
| Outline Depth : | 10.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-R1.7) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 70 cd/m² (Typ.) |
| Contrast Ratio : | 150 : 1 (Typ.) (Transmissive) |
| Display Color : | 4096 (4-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 40 (Typ.)(Tr) |
| Viewing Angle : | 45/45/25/25 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable : | N |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| NL8060BC26-28N | NLT | 10.4" | 800×600 |
| NL4864HL11-01A | NLT | 3.5" | 480×640 |
| NL204153AM21-24A | NLT | 21.3" | 2048×1536 |
| NL3224BC35-01 | NLT | 5.5" | 320×240 |
| NL10276BC20-05Y | NLT | 10.4" | 1024×768 |
| NL204153BC21-09 | NLT | 21.3" | 2048×1536 |
| NL128102BC31-02 | NLT | 20.1" | 1280×1024 |
| NL8060BC26-28D | NLT | 10.4" | 800×600 |
| NL280210AM15-04A | NLT | 21.3" | 2800×2100 |
| NL2432HC22-50K | NLT | 3.5" | 240×320 |
| NL160120BC27-19E | NLT | 21.3" | 1600×1200 |
| NL204153BM21-05 | NLT | 21.3" | 2048×1536 |

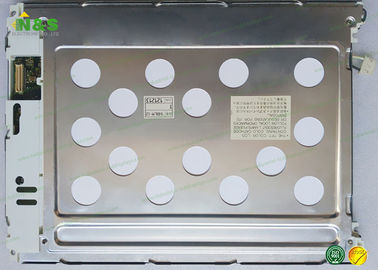

NL6448AC30-12 Picture
