Product Details:
|
| Panel Brand: | Innolux | Panel Model: | EJ050NA-01D |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.0 Inch |
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 108×64.8 Mm | Outline: | 120.7×76.3×3.3 Mm |
| Surface: | Glare (Haze 0%) | Brightness: | 350 Cd/m² (Typ.) |
| High Light: | lcd display panel,innolux lcd screen |
||

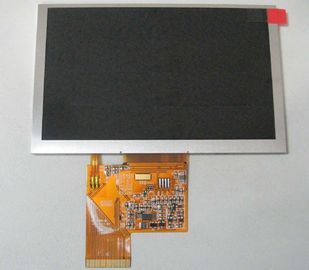

Normally White EJ050NA-01D Innolux LCD Panel 5.0 inch 108×64.8 mm Active Area.
| Panel Size : | 5.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 188 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.045×0.135 mm (H×V) |
| Pixel Pitch : | 0.135×0.135 mm (H×V) |
| Weight : | 60g |
| Surface : | Glare (Haze 0%) |
| Active Area : | 108×64.8 mm (H×V) |
| Bezel Area : | 110.6×67.6 mm (H×V) |
| Outline Dimension : | 120.7×76.3 mm (H×V) |
| Outline Depth : | 3.10±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M190A1-P01 | Innolux | 19.0" | 1440×900 |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
EJ050NA-01D Information
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : |
N |
