Product Details:
|
| Panel Brand: | Innolux | Panel Model: | ED043CA-01D |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.3 Inch |
| Resolution: | 480(RGB)×272 , WQVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 95.04×53.856 Mm | Outline: | 105.5×67.2 Mm |
| Surface: | Antiglare | Brightness: | 400 Cd/m² (Typ.) |
| High Light: | tft lcd display,innolux lcd screen |
||

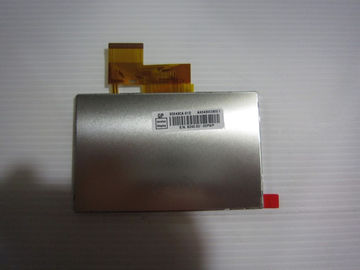

ED043CA-01D Innolux LCD Panel 4.3 inch Normally White with 95.04×53.856 mm
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480(RGB)×272 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.066×0.198 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 64g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 95.04×53.856 mm (H×V) |
| Outline Dimension : | 105.5×67.2 mm (H×V) |
| Outline Depth : | 4.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 50% NTSC (CIE1931) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
