Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×600 , SVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 162×121.5 Mm | Outline: | 183×141 Mm |
| High Light: | tft lcd display,innolux lcd screen |
||

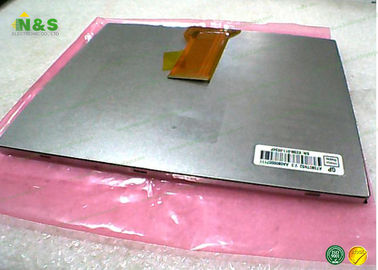

AT080TN52 V.3 8.0 inch flat panel lcd display Normally White LCM 800×600 250
AT080TN52 V.3 Information
| Panel Size: | 8.0 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 125 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0675×0.2025 mm (H×V) |
| Pixel Pitch : | 0.2025×0.2025 mm (H×V) |
| Weight : | 254g |
| Active Area : | 162×121.5 mm (H×V) |
| Bezel Area : | 164.8×124.3 mm (H×V) |
| Outline Dimension : | 183×141 mm (H×V) |
| Outline Depth : | 6.3±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P101LCA-3P1 | Innolux | 10.1" | 1920×1200 |
| V650HP2-PS5 | Innolux | 65" | 1920×1080 |
| N156HGE-DB1 | Innolux | 15.6" | 1920×1080 |
| V500DJ4-QS1 | Innolux | 50" | 3840×2160 |
| V500DJ2-QS5 | Innolux | 50" | 3840×2160 |
| V400DJ1-QS5 | Innolux | 40" | 3840×2160 |
| P089DCZ-3A1 | Innolux | 8.9" | 800×1280 |
