Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
|---|---|---|---|
| Resolution: | 800(RGB)×480 , WVGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 176.64×99.36 Mm | Outline: | 192.8×116.9 Mm |
| High Light: | tft lcd display,innolux lcd screen |
||

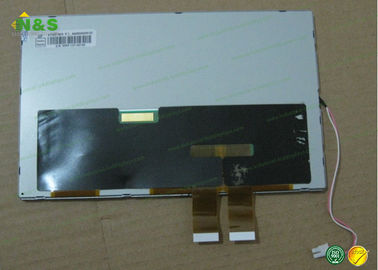

8.0 inch AT080TN03 V.1 Innolux LCD Panel with 176.64×99.36 mm for Portable DVD player panel
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
AT080TN03 V.1 Information
| Panel Size : | 8.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 116 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0736×0.2070 mm (H×V) |
| Pixel Pitch : | 0.2208×0.2070 mm (H×V) |
| Weight : | 240g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 176.64×99.36 mm (H×V) |
| Bezel Area : | 180.1×103.4 mm (H×V) |
| Outline Dimension : | 192.8×116.9 mm (H×V) |
| Outline Depth : | 6.4±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 300 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P079ZCZ-3Z2 | Innolux | 7.9" | 768×1024 |
| M315DJJ-Q01 | Innolux | 31.5" | 3840×2160 |
| V320BJ6-Q01 | Innolux | 31.5" | 1366×768 |
| V650DK2-QS2 | Innolux | 65" | 3840×2160 |
| F055A15-6T1 | Innolux | 5.5" | 720×1280 |
| F050A19-601 | Innolux | 5.5" | 720×1280 |
| HE101IA-01R | Innolux | 10.1" | 1280×800 |
| F055A13-6T1 | Innolux | 5.5" | 720×1280 |
| F050A13-604 | Innolux | 5.0" | 720×1280 |
| V650DK6-QS1 | Innolux | 65" | 3840×2160 |
