Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 5.0 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA | Display Mode: | TN, Normally White, Transmissive |
| Active Area: | 101.568×76.176 Mm | Outline: | 117.65×88.43×6 Mm |
| High Light: | tft lcd display,innolux lcd screen |
||

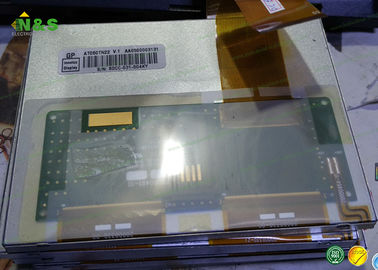

AT050TN22 Innolux LCD Panel 5.0 inch Normally White LCM 640×480 101.568×76.176 mm Active Area
AT050TN22 Information
| Panel Size : | 5.0 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 160 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0529×0.1587 mm (H×V) |
| Pixel Pitch : | 0.1587×0.1587 mm (H×V) |
| Weight : | 75g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 101.568×76.176 mm (H×V) |
| Bezel Area : | 104.60×79.20 mm (H×V) |
| Outline Dimension : | 117.65×88.43 mm (H×V) |
| Outline Depth : | 5.7±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| M238HCJ-P02 | Innolux | 23.8" | 1920×1080 |
| ME270NA-01A | Innolux | 27.0" | 1920×1080 |
| N156BGE-PB1 | Innolux | 15.6" | 1366×768 |
| PP050IC-01F | Innolux | 5.0" | 720×1280 |
| P060DDZ-ZZ1 | Innolux | 6.0" | 800×1280 |
