Product Details:
|
| Form Factor: | Flat Rectangle Display | Dot Pitch: | 0.08275×0.24825 Mm (H×V) |
|---|---|---|---|
| Pixel Pitch: | 0.24825×0.24825 Mm (H×V) | Surface: | Antiglare (Haze 25%), Hard Coating (3H) |
| Active Area: | 476.64×268.11 Mm (H×V) | Bezel Area: | 479.8×271.3 Mm (H×V) |
| Dot Resolution: | 1920(RGB)×1080 (FHD) | Landscape Or Portrait: | Landscape Type |
| High Light: | tft lcd display,lcd display panel |
||

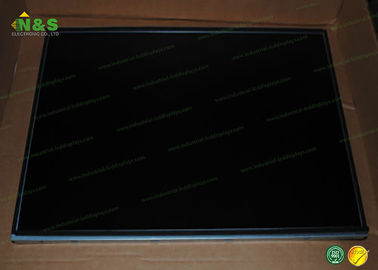

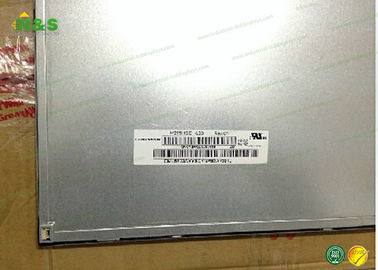

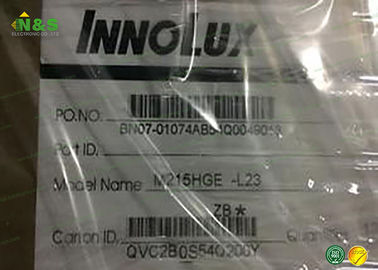

200 cd / m² Innolux LCD Panel M215HGE - L23 21.5 inch and 1920*1080
21.5", 1920×1080, 8-bit, LVDS, 2D, WLED, Flat, Panel Hot Model
| Panel Model | Size | Type | Resolution | cd/m2 | C/R | Backlight | Color |
| LM215WF4-TLG1 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| T215HVN01.1 | 21.5" | Panel | 1920×1080 | 250 | 3000:01:00 | WLED | 16.7M |
| LM215WF3-SLN1 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| M215HGE-L21 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| M215HNE-L30 | 21.5" | Panel | 1920×1080 | 250 | 3000:01:00 | WLED | 16.7M |
| M215HTN01.1 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| HR215WU1-120 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| MV215FHM-N30 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| HR215WU1-210 | 21.5" | Panel | 1920×1080 | 250 | 1000:01:00 | WLED | 16.7M |
| M215HJJ-L30 Rev.B1 | 21.5" | Panel | 1920×1080 | 250 | 3000:01:00 | WLED | 16.7M |
Advantages of N&S For the TFT LCD Screen:
Wholesale Price: We are the agency & professional sourcing buyer for the various branded LCD screens.
Fast delivery: We own the stock for the EOL & hard-to-find LCD screen replacements.
High Quality: Each LCD Screen will be tested pcs by pcs before shipments.
Good service: Professional international trade sales team & LCD panels testing team for 6 years.
One year international warranty.
100% Tested Before Shipping.
We mainly sell Industrial LCD panel and touch screen, provides the product information, technical consultation for all kinds of LCD screen and touch screen, We have many stock parts for 3.5-20inches is between the various industrial screen, They are applicable to vehicle, medical equipment, injection molding machine ,industrial equipment etc. Welcome to order.
We sale TFT LCD module for the PDA, GPS, game device and mobile phone and it is one of the largest scale and best after-service company in the area of PDA spare parts.
CHIMEI INNOLUX M215HGE-L23 Mechanical Features
| Panel Size : | 21.5 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 102 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.08275×0.24825 mm (H×V) |
| Pixel Pitch : | 0.24825×0.24825 mm (H×V) |
| Weight : | 2.10/2.16Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 476.64×268.11 mm (H×V) |
| Bezel Area : | 479.8×271.3 mm (H×V) |
| Outline Dimension : | 495.6×292.2 mm (H×V) |
| Outline Depth : | 11.0/11.5 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on up, down bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
CHIMEI INNOLUX M215HGE-L23 Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle : 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.43 (Max.)(9 points)
CHIMEI INNOLUX M215HGE-L23 General Features
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | M215HGE-L23 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 21.5 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 476.64×268.11 mm |
| Outline : | 495.6×292.2×11.5 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
Display Colors : 16.7M (8-bit)
Response Time : 1.5/3.5 (Typ.)(Tr/Td)
Viewing Angle : 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 11S4P WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
Questions & Answers:
Q1: How can you trust us?
- We are a professional team for the LCD panel international trade already for 6 years. We own the more professional & more competitive sourcing line & agency for the LCD Screen panels.
Q2: When can I get the update price?
- Within 24 hours after we get your inquiry.
Q3: What is your product capacity per day?
- 500-1000 pcs/day. We test each pcs LCD panels before shipment.
Q4: What is the payment term?
- T/T, Western Union, MoneyGram, PayPal.
[Delivery Time]
The LCD Screen Replacements In stock, ship within 1-3 days.
[Quality Guarantee]
100% New and Original
180-365 Days quality warranty
[Payment Opinions]
1. T/T (Wire Transfer)
2. Western Union
3. Moneygram
4. Paypal
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V156B2-P02 | Innolux | 15.6" | 1366×768 |
| N154I2-P05 | Innolux | 15.4" | 1280×800 |
| C03024-01Z | Innolux | 3.0" | 960×480(dot) |
| G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
| F04307-06Z | Innolux | 4.3" | 480×800 |
| CG043JN16 | Innolux | 4.3" | 480×800 |
| F04008-01U | Innolux | 4.0" | 480×800 |
| N156BGE-P21 | Innolux | 15.6" | 1366×768 |
