Product Details:
|
| Display Mode: | MVA, Normally Black, Transmissive | Panel Size: | 19.5 Inch |
|---|---|---|---|
| Pixel Pitch: | 0.2265×0.221 Mm (H×V) | Form Facto: | Flat Rectangle Display |
| Surface: | Antiglare (Haze 25%), Hard Coating (3H) | Brightness: | 250 Cd/m² (Typ.) |
| Resolution: | 1920(RGB)×1080 , FHD | Weight: | 1.47±0.08Kgs |
| High Light: | tft lcd display,lcd display panel |
||

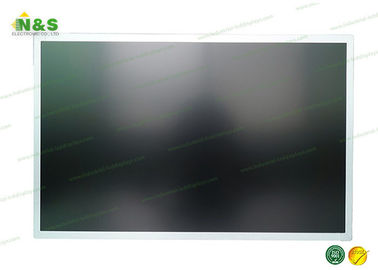

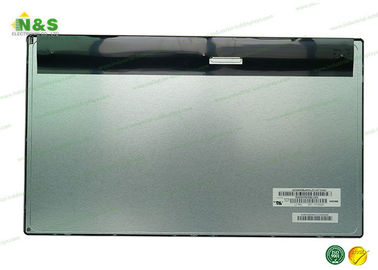

19.5 inch MVA, Normally Black, Transmissive M200HJJ-L20 Innolux LCD Panel for 250 cd/m²
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Basic Info:
Panel Brand : INNOLUX

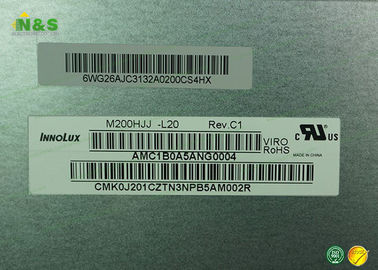

Panel Model : M200HJJ-L20
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 19.5 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : MVA, Normally Black, Transmissive
Active Area : 434.88×238.68 mm
Outline : 459.8×263×11.82 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 3000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 72%
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
| Lamp Position : | Edge light type (Left side) |
| Lamp Type : | WLED |
| Lamp Life Time : | 30K(Min.) (Hours) |
| Lamp Voltage : | 28.8±2.7V |
| Lamp Current : | 100±6mA |
| Lamps Power Consumption : | 11.52/12.6W (Typ./Max.) |
| Interface Type : | Connector |
| ignal Category : | LVDS |
| Signal Class : | LVDS (2 ch, 8-bit) |
| Input Voltage for Panel : | 5.0V (Typ.) |
| Input Current for Panel : | 0.7/0.83A (Typ./Max.) |
| Panel Power Consumption : | 4.6/5.5W (Typ./Max.) |
| Interface Type : | Connector |
INNOLUX M200HJJ-L20 Optical Features
| Display Mode : | MVA, Normally Black, Transmissive |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 3000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 25 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33/1.39 (Typ./Max.)(9 points) |
INNOLUX M200HJJ-L20 Mechanical Features
Panel Size : 19.5 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 112 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0755×0.221 mm (H×V)
Pixel Pitch : 0.2265×0.221 mm (H×V)
Weight : 1.47±0.08Kgs
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 434.88×238.68 mm (H×V)
Bezel Area : 438.18×241.98 mm (H×V)
Outline Dimension : 459.8×263 mm (H×V)
Outline Depth : 8.87/11.82 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (7-M3) on right, up, down bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
