Product Details:
|
| Panel Brand: | CHIMEI INNOLUX | Weight: | 1.40/1.50Kgs (Typ./Max.) |
|---|---|---|---|
| Pixel Pitch: | 0.264×0.264 Mm (H×V) | Bezel Area: | 341.9×274.4 Mm (H×V) |
| Resolution: | 1280(RGB)×1024 (SXGA) | Aspect Ratio: | 5:4 (H:V) |
| Panel Size: | 17.0 Inch | Form Factor: | Flat Rectangle Display |
| High Light: | tft lcd display,lcd display panel |
||

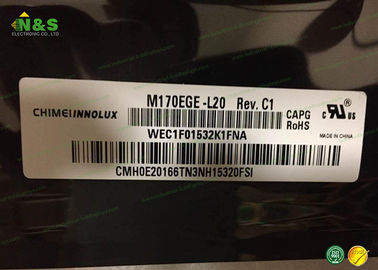

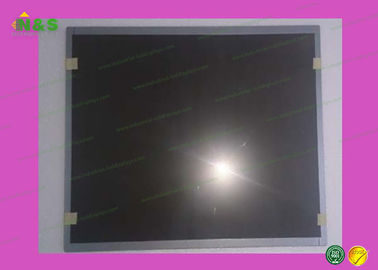

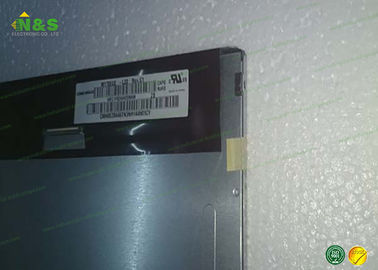

CHIMEI Innolux LCD Panel 17.0 INCH / M170EGE-L20 Flat Rectangle screen panel lcd
About Us:
N&S Technology CO., LTD was established in 2010, Specialize in the LCD Panels sourcing & agency for the international trade.
Our products have passed the certification of ISO9001 Quality Management System, we have a wealth of professional experience and strong sourcing team & international sales team. N&S always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!
CHIMEI INNOLUX M170EGE-L20 Mechanical Features
Panel Size : 17.0 inch
Dot Resolution : 1280(RGB)×1024 (SXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 1.40/1.50Kgs (Typ./Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 337.92×270.336 mm (H×V)
Bezel Area : 341.9×274.4 mm (H×V)
Outline Dimension : 358.5×296.5 mm (H×V)
Outline Depth : 10.5±0.5 mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without
CHIMEI INNOLUX M170EGE-L20 General Features
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | M170EGE-L20 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 17.0 inch |
| Resolution : | 1280(RGB)×1024 , SXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 337.92×270.336 mm |
| Outline : | 358.5×296.5×11 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
MORE DETAILS:
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 1/4 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 12S4P WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)
CHIMEI INNOLUX M170EGE-L20 Optical Features
Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 72% NTSC (CIE1931)
Response Time : 1/4 (Typ.)(Tr/Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Typ./Max.)(9 points)
Sample Charge:
1. Samples charge: According to the LCD panel model. Pls contact us to get details.
2. Samples time: 1-3 working days for stock models.
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.

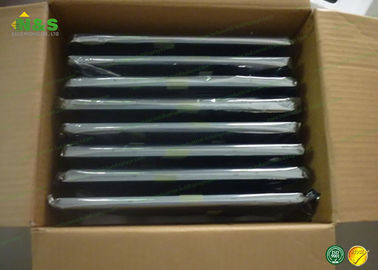

5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
