Product Details:
|
| Glass Depth: | 0.50+0.50 Mm | Response Time: | 10/15 (Typ.)(Tr/Td) |
|---|---|---|---|
| Signal Interface: | Parallel RGB (1 Ch, 8-bit) + SPI , 54 Pins | Resolution: | 320(RGB)×240 , QVGA |
| Display Mode: | TN, Normally White, Transmissive | Panel Size: | 3.5 Inch |
| Display Colors: | 16.7M , CIE1931 60% | Panel Type: | A-Si TFT-LCD , CELL |
| High Light: | tft lcd display,lcd display panel |
||

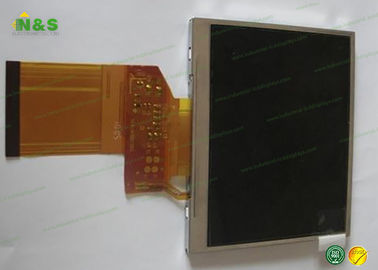

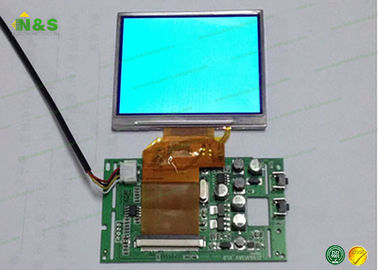

3.5 inch lq035nc121 Innolux LCD Panel for 320*240 TN, Normally White, Transmissive
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Mechanical Features
| Panel Size : | 3.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 115 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.073×0.219 mm (H×V) |
| Pixel Pitch : | 0.219×0.219 mm (H×V) |
| Active Area : | 70.08×52.56 mm (H×V) |
| Outline Dimension : | 76.9×63.9 mm (H×V) |
| Outline Depth : | 1.47±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Optical Features
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 0 cd/m² |
| Contrast Ratio : | 350 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M () |
| Color Gamut : | 60% NTSC (CIE1931) |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 55/55/45/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| Transmissivity : | 7.4% (Typ.)(with Polarizer) |
more details:
Panel Brand : ChiHsin
Panel Model : LQ035NC121
Panel Type : a-Si TFT-LCD , CELL
Panel Size : 3.5 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 70.08×52.56 mm
Outline : 76.9×63.9×1.47 mm
Glass Depth : 0.50+0.50 mm
Transmissivity : 7.4% (Typ.)(with Polarizer)
Contrast Ratio : 350:1 (Typ.)
Display Colors : 16.7M , CIE1931 60%
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 55/55/45/50 (Typ.)(CR≥10) (L/R/U/D)
Signal Interface : Parallel RGB (1 ch, 8-bit) + SPI , 54 pins
Input Voltage : 3.3V (Typ.)(VCC)
| Signal Category : | TTL |
| Signal Class : | Parallel RGB (1 ch, 8-bit) + SPI |
| Input Voltage for Panel : | 3.3V (Typ.)(VCC) |
| Input Current for Panel : | 8.6mA (Typ.)(ICC) |
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC |
| Interface Type : | FPC |
100% Tested Before Shipping.
We mainly sell Industrial LCD panel and touch screen, provides the product information, technical consultation for all kinds of LCD screen and touch screen, We have many stock parts for 3.5-20inches is between the various industrial screen, They are applicable to vehicle, medical equipment, injection molding machine ,industrial equipment etc. Welcome to order.
We sale TFT LCD module for the PDA, GPS, game device and mobile phone and it is one of the largest scale and best after-service company in the area of PDA spare parts.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
