Product Details:
|
| Operating Temperature: | -30 ~ 80 °C | Pixel Configuration: | RGB Vertical Stripe |
|---|---|---|---|
| Pixel Density: | 98 PPI | Aspect Ratio: | 16:10 (H:V) |
| Dot Pitch: | 0.08625×0.25875 Mm (H×V) | Weight: | 880g (Typ.) |
| High Light: | tft lcd display,innolux lcd screen |
||
1280×800 15.4'' G154I1- LE1 Innolux lcd panel replacement for Industral / Recreational Machines
CHIMEI INNOLUX G154I1-LE1 Mechanical Features
| Panel Size : | 15.4 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 98 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.08625×0.25875 mm (H×V) |
| Pixel Pitch : | 0.25875×0.25875 mm (H×V) |
| Weight : | 880g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 331.2×207 mm (H×V) |
| Bezel Area : | 334.5×210.3 mm (H×V) |
| Outline Dimension : | 352×230 mm (H×V) |
| Outline Depth : | 9.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
1 Year warranty
1 Day shipping
0 Return
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Product Picture for G154I1-LE1

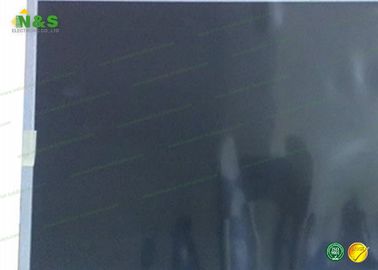

Profile Picture

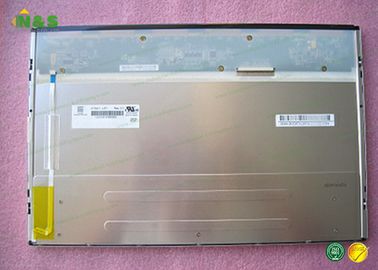

Backside Picture

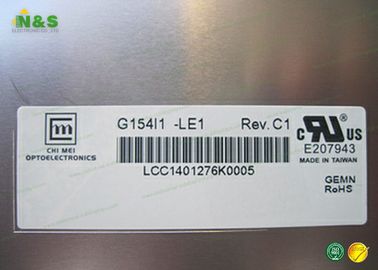

Tabs Picture

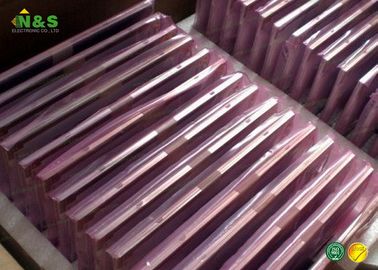

Packaging Picture
