Product Details:
|
| Panel Type: | FSTN-LCD , Panel | Brightness: | 100 Cd/m² (Typ.) |
|---|---|---|---|
| Active Area: | 95.985×71.985 Mm | Panel Size: | 4.7 Inch |
| Dot Resolution: | 320×240 , QVGA | Display Colors: | Monochrome |
| High Light: | anti glare lcd screen,digital lcd display |
||
4.7 inch LMG7520RPFC KOE LCD Display ,320×240 , QVGA numeric lcd display
Quick Details:
Panel Brand : KOE
Panel Model : LMG7520RPFC
Panel Type : FSTN-LCD , Panel
Panel Size : 4.7 inch
Resolution : 320×240 , QVGA
Display Mode : STN, Black/White (Negative), Transmissive
Active Area : 95.985×71.985 mm
Outline : 129.6×92.6×7.5 mm
Surface : Glare (Haze 0%), Hard coating (3H)
Brightness : 100 cd/m² (Typ.)
Contrast Ratio : 20:1 (Typ.)
Display Colors : Monochrome
Response Time : 160/110 (Typ.)(Tr/Td)
Viewing Angle : 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D)
Specifications :
| Pixel Configuration | Rectangle |
| Pixel Density | 84 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.300×0.300 mm (H×V) |
| Pixel Pitch | 0.300×0.300 mm (H×V) |
| Weight | 110g (Typ.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 95.985×71.985 mm (H×V) |
Our Advantages for LMG7520RPFC:
LCD panels are sourced directly from manufacturers, OEM/CM's and worldwide business partners spanning five continents that include 40 countries, United States, Italy, Singapore, Korea, Taiwan, Germany, Thailand, Malaysia, Japan, etc. There are more than 540 enterprises. With our strong sourcing team and sufficient stock in our warehouse, and our professional Quality Control team and professional testing instruments, we can offer reliable quality panels at competitive price.
N&S will be your powerful partner on LCDs in China. Here we are to quote your need.
| Panel Model | Brand | Size | Resolution |
| SX19V010-ZZA | KOE | 7.5" | 640×480 |
| SX19V010 | KOE | 7.5" | 640×480 |
| SX31S009-A01 | KOE | 12.1" | 800×600 |
| SX31S009 | KOE | 12.1" | 800×600 |
| SX31S008 | KOE | 12.1" | 800×600 |
| SX31S007 | KOE | 12.1" | 800×600 |
| SX31S004 | KOE | 12.1" | 800×600 |
| SX31S003 | KOE | 12.1" | 800×600 |
| SX31S002 | KOE | 12.1" | 800×600 |
| LNG9980ZWCC | KOE | 12.1" | 800×600 |
| LM9910ZWCC | KOE | 11.3" | 800×600 |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

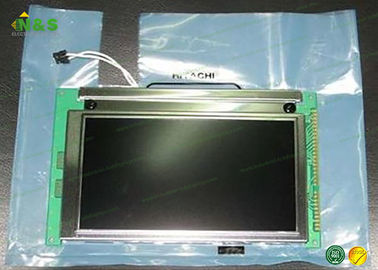

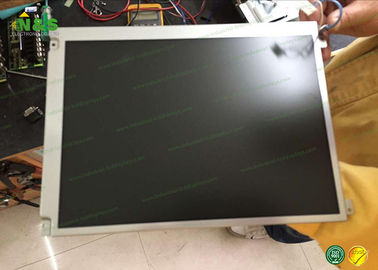

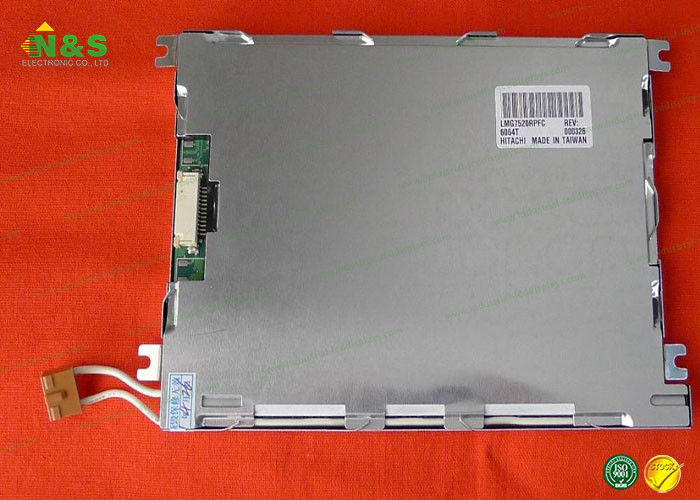

Details Pictures for Industrial LCD Displays:
