Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 110.88×62.832 Mm |
|---|---|---|---|
| Outline: | 120.7×75.8×4.45 Mm | Surface: | Antiglare |
| Display Colors: | 16.7M (8-bit) , CIE1931 50% | Response Time: | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
| High Light: | tft lcd display,lcd display panel |
||
Normally White AT050TN33 LCD Display with 480*272 for MP4 PMP panel
| Panel Brand : | INNOLUX |
| Panel Model : | AT050TN33 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.0 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 110.88×62.832 mm |
| Outline : | 120.7×75.8×4.45 mm |
| Surface : | Antiglare |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S2P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
| Panel Size : | 5.0 inch |
| Dot Resolution : | 480(RGB)×272 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 109 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.077×0.231 mm (H×V) |
| Pixel Pitch : | 0.231×0.231 mm (H×V) |
| Weight : | 83g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 110.88×62.832 mm (H×V) |
| Bezel Area : | 113.90×65.85 mm (H×V) |
| Outline Dimension : | 120.7×75.8 mm (H×V) |
| Outline Depth : | 4.25±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive, Film / Glass) |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 13 years experience in intelligent controller R&D and manufacturing.
6. Strong R&D term supports perfect customized projects.
7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.
8. Fabulous after-sale service.
Below are our other LCD panels stock for your easy reference:
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| P079ZCZ-3Z2 | Innolux | 7.9" | 768×1024 |
| M315DJJ-Q01 | Innolux | 31.5" | 3840×2160 |
| V320BJ6-Q01 | Innolux | 31.5" | 1366×768 |
| V650DK2-QS2 | Innolux | 65" | 3840×2160 |
| F055A15-6T1 | Innolux | 5.5" | 720×1280 |
| F050A19-601 | Innolux | 5.5" | 720×1280 |
| HE101IA-01R | Innolux | 10.1" | 1280×800 |

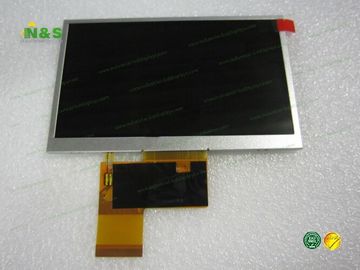

Details Pictures for AT050TN33
