Product Details:
|
| Resolution: | 640(RGB)×480 , VGA | Panel Size: | 5.7 Inch |
|---|---|---|---|
| Signal Interface: | TTL (1 Ch, 6-bit) , 33 Pins | Weight: | 155/170g (Typ./Max.) |
| Holes & Brackets: | Side Mounting Holes (4-Φ2.6); Rear Mounting Holes (4-Φ2.6) | Color Gamut: | 54% NTSC (CIE1931) |
| High Light: | tft lcd display,innolux lcd screen |
||
Recommend Enough Operating and Storage Temperature LCD G057VGE-T01 Innolux possess High Brightness and Contrast Ratio
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
INNOLUX G057VGE-T01 Basic Information
| Panel Brand : | Innolux |
| Panel Model : | G057VGE-T01 |
| Panel Type : | a-Si TFT-LCD , Panel |
| Operating Temperature : | -30 ~ 85 °C |
| Storage Temperature : | -30 ~ 85 °C |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Dot Pitch : | 0.060×0.180 mm (H×V) |
| Pixel Pitch : | 0.180×0.180 mm (H×V) |
| Weight : | 155/170g (Typ./Max.) |
| Surface : | Antiglare (Haze 25%) |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 118.2×89.4 mm (H×V) |
| Outline Dimension : | 144×104.6 mm (H×V) |
| Outline Depth : | 12.3±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-Φ2.6); Rear mounting holes (4-Φ2.6) |
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
The Products Backlight System
Lamp Position : Edge light type
Lamp Type : WLED
Lamp Life Time : 50K(Min.) (Hours)
Interface Type : Connector
Backlight Interface:
| Brand | JST |
| Model | SM06B-SRKS-G-TB(HF) |
| Pin Pitch | 1.0 mm |
| Pins | 6 pins |
| Amount | 1 pcs |
Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board : 12.0±1.2V
Lamp Driver Board : 0.26±0.03A
Lamp Driver Board : 2.45W (Typ.)

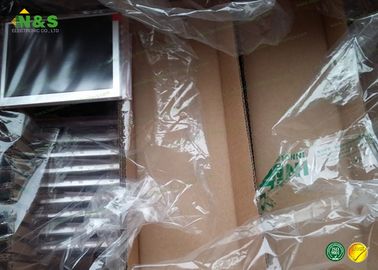

Details Picture for Innolux G057VGE-T01
