Product Details:
|
| Panel Type: | A-Si TFT-LCD , Panel | Panel Size: | 5.0 Inch |
|---|---|---|---|
| Resolution: | 640(RGB)×480 , VGA | Outline: | 117.65×88.43×5.9 Mm |
| Surface: | Antiglare | Brightness: | 250 Cd/m² (Typ.) |
| Frequency: | 60Hz | Lamp Type: | WLED |
| High Light: | lcd display panel,innolux lcd screen |
||
Innolux LCD Panel ZJ050NA-08C 5.0 inch 101.57×76.18 mm Active Area 117.65×88.43×5.9 mm Outline
INNOLUX ZJ050NA-08C General Features
| Panel Brand : | INNOLUX |
| Panel Model : | ZJ050NA-08C |
| Panel Type : | a-Si TFT-LCD , Panel |
| Panel Size : | 5.0 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 101.57×76.18 mm |
| Outline : | 117.65×88.43×5.9 mm |
| Surface : | Antiglare |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 50 pins |
| Input Voltage : | 3.3/10.4/17.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
INNOLUX ZJ050NA-08C Mechanical Features
| Panel Size : | 5.0 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 160 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.053×0.159 mm (H×V) |
| Pixel Pitch : | 0.159×0.159 mm (H×V) |
| Weight : | TBD |
| Surface : | Antiglare |
| Active Area : | 101.57×76.18 mm (H×V) |
| Outline Dimension : | 117.65×88.43 mm (H×V) |
| Outline Depth : | 5.7±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| V850DK1-QS1 Rev.C8 | Innolux | 85" | 3840×2160 |
| V850DK1-QS1 Rev.C2 | Innolux | 85" | 3840×2160 |
| V650DJ4-QS5 Rev.M1 | Innolux | 65" | 3840×2160 |
| N080ICP-G01 CELL | Innolux | 8.0" | 800×1280 |
| DE080NA-01D | Innolux | 8.0" | 800×480 |
| AT080YN01 | Innolux | 8.0" | 1024×600 |
| PG055IA-03H | Innolux | 5.5" | 720×1280 |
| PP057IC-01A | Innolux | 5.7" | 1080×1920 |
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.

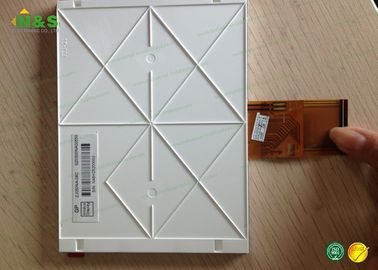

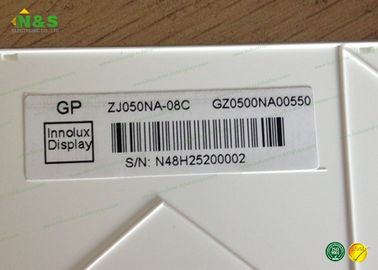

Details Pictures for Innolux LCD Panel ZJ050NA-08C
