Product Details:
|
| Dot Resolution: | 800(RGB)×480 (WVGA) | Pixel Density: | 134 PPI |
|---|---|---|---|
| Weight: | 117g (Typ.) | Display Color: | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) | White Color Chromaticity: | Wx:0.310; Wy:0.330 |
| High Light: | tft lcd display,lcd display panel |
||
7'' Antiglare Surface LCD EJ070NA-01K Innolux with 50% NTSC (CIE1931) Color Gamut and thin border
1. Agent Brand:
* AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds, you can get the most competitive price for real products.
2. Application of our lcd panles:
*Our LCD displays are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.
3. Quality to be guaranteed:
*All the panels are 100% original and brand new. Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number.
4. Quickly delivery:
*We also have international logistic center in Hongkong to support your batch orders to be delivered from HongKong directly. And we own various long-term cooperated express lines for much better service for our clients.
5.long-term partner:
* Products are sold to more than 150 countries. And big quantity for the long-term partners.
6. Super After-Sale service:
*One year warranty. Feel free to contact to us if there is any problems.
CHIMEI INNOLUX EJ070NA-01K Signal Interface
|
Signal Category |
TTL |
|||||
|
Signal Class |
Parallel RGB (1 ch, 6/8-bit) |
|||||
|
Input Voltage for Panel |
3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
|||||
|
Input Current for Panel |
4/20/0.2/0.2mA (Typ.)(IDVDD/IAVDD/IGH/IGL) |
|||||
|
Panel Power Consumption |
0.226W (Typ.) |
|||||
|
Voltage for Display Signals |
0.3≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD |
|||||
|
Interface Type |
FPC |
|||||
|
Signal Interface |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Configuration |
|
INNOLUX |
EJ070NA-01K |
0.5mm |
50 pins |
1 pcs |
DRGB-50P1C8B-115A |
|
Product Information:
Panel Model :EJ070NA-01K
Panel Type : a-Si TFT-LCD , Panel
Operating Temperature : -20 ~ 60 °C
Storage Temperature : -30 ~ 70 °C
Reverse Scan : Yes (U/D, L/R)
Total Power Consumption : 1.90W (Typ.)
Time Controller (T-CON) : Embedded T-CON
Remarks : DE/SYNC model selectable; 2 in 1 FPC (Z shape)
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
Product Show for EJ070NA-01K

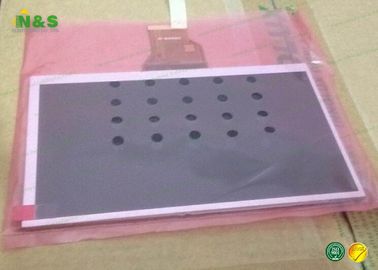

Front Picture

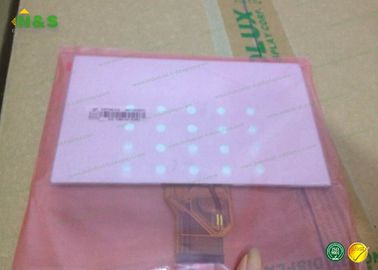

Backside Picture

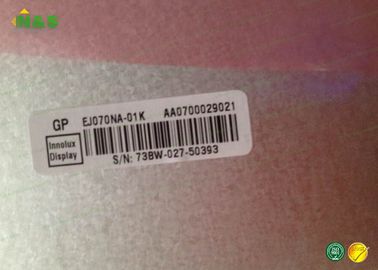

Tabs Picture
