Product Details:
|
Resolution: | 800(RGB)×480 , WVGA | Outline: | 120.7×76.3×3.3 Mm |
---|---|---|---|
Response Time: | 10/15 (Typ.)(Tr/Td) | Lamp Type: | 7S2P WLED Without Driver |
Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 50 Pins | Storage Temperature: | -30 ~ 80 °C |
Pixel Density: | 188 PPI | Outline Depth: | 3.10±0.2 Mm |
High Light: | lcd display panel,innolux lcd screen |
Supply 5.0 inch Innolux LCD Panel EJ050NA-01G with Enough Storage Temperature and 15:9 Aspect Ratio
Product Basic Info:
Panel Brand : CHIMEI INNOLUX
Panel Model : EJ050NA-01G
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 5.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 108×64.8 mm
Outline : 120.7×76.3×3.3 mm
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 50%
Response Time : 10/15 (Typ.)(Tr/Td)
Specifications
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 188 PPI |
Aspect Ratio : | 15:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.045×0.135 mm (H×V) |
Pixel Pitch : | 0.135×0.135 mm (H×V) |
Weight : | TBD |
Bezel Area : | 110.6×67.6 mm (H×V) |
Outline Dimension : | 120.7×76.3 mm (H×V) |
Outline Depth : | 3.10±0.2 mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
1. Q: Are you a manufacturer or trading company?
A: We are a trading company who has been specializing in marketing LCD display for 6 years.
2. Q:What’s the quality of your products?
A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.
3. Q: What is your after-sale service?
A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
4. Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.
6. Q: what brand of screen could we handle?
A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Details photograph

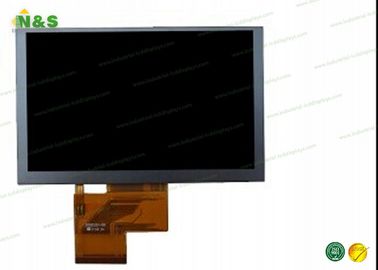

Positive Photograph

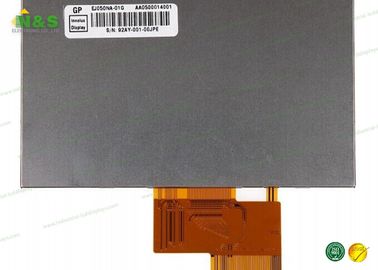

Backside Photograph
