Flat Rectangle KOE LCD Display TX09D80VM3CCA HITACHI Antiglare Hard Coating Surface

Flat Rectangle KOE LCD Display TX09D80VM3CCA HITACHI Antiglare Hard Coating Surface

    • Flat Rectangle KOE LCD Display TX09D80VM3CCA HITACHI Antiglare Hard Coating Surface
    • Flat Rectangle KOE LCD Display TX09D80VM3CCA HITACHI Antiglare Hard Coating Surface
    • Flat Rectangle KOE LCD Display TX09D80VM3CCA HITACHI Antiglare Hard Coating Surface
  • Flat Rectangle KOE LCD Display TX09D80VM3CCA HITACHI Antiglare Hard Coating Surface

    Product Details:

    Place of Origin: Japan
    Brand Name: HITACHI
    Certification: ISO9001
    Model Number: TX09D80VM3CCA

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: TX09D80VM3CCA Panel Brand: HITACHI
    Descrition: 240×320 Panel Type: A-Si TFT-LCD
    Active Area: 53.64×71.52 Mm Outline: 64×86×8.35 Mm

    TX09D80VM3CCA HITACHI a-Si TFT-LCD ,3.5 inch, 240×320 for Industrial Application



    TX09D80VM3CCA Basic Information

    Panel Model TX09D80VM3CCA
    Panel Brand HITACHI
    Descrition a-Si TFT-LCD ,3.5 inch, 240×320
    Panel Type a-Si TFT-LCD
    Operating Temperature -20 ~ 70 °C
    Storage Temperature -30 ~ 80 °C





    Packing & Delivery for our LCD Screen Panel Replacements:

    1. Anti-static Bag Packing.
    2. Anti-Shock Bubble Bag Packing
    3. Foam and Hard Carton Packing
    4. Picked up by forward and delivered by express services.

    Packaging & Delivery

    Packaging Details:

    Safey package

    Plastic trays inside

    2 layes of cartons

    Fragile sign on top

    TX09D80VM3CCA Mechanical Features

    Dot Resolution 240(RGB)×320 (QVGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 113 PPI
    Aspect Ratio 3:4 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.0745×0.2235 mm (H×V)
    Pixel Pitch 0.2235×0.2235 mm (H×V)
    Weight 48g (Typ.)
    Surface Antiglare, Hard coating (3H)
    Active Area 53.64×71.52 mm (H×V)
    Bezel Area 57.64×75.52 mm (H×V)
    Outline Dimension 64×86 mm (H×V)
    Outline Depth 8.05±0.3 mm
    Landscape or Portrait Portrait type
    Touch Panel Embeded (4-wire Resistive)





    Guarantee:

    (1) All items will be strictly tested and shipped with safe & professional package.

    (2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

    (3) We will do our best to solve any possible problem for your after sale. Please contact to us.

    TX09D80VM3CCA Optical Features

    Display Mode TN, Normally White, TMR
    Brightness 320 cd/m² (Typ.)
    Contrast Ratio 300 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Response Time 30 (Typ.)(Tr+Td)
    Viewing Angle 80/60/70/70 (Typ.)(CR≥5) (L/R/U/D)
    Viewing Direction 3 o'clock
    White color Chromaticity Wx:0.320; Wy:0.340
    White Variation 1.43 (Max.)(5 points)
    Sunlight Readable Y



    We Can Do for You:

    1) One-to-one service with efficient & professional support;

    2) Protection of your design and all your private information;

    3) We could supply different hard disk for you.

    4) Quality stability, can to provide certification of products;

    5) Convenient payment methods: PayPal, T/T and Western Union;

    6) Speedy shipment: we could arrange the shipment within 1-3 business days.

    7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

    8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

    TX09D80VM3CCA Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan No





    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    SP10Q002-Z1 KOE 4.0" 240×160
    SP10Q002-T KOE 4.0" 240×160
    SP10Q002 KOE 4.0" 240×160
    SX16H006-ZZA KOE 6.2" 640×240
    SX16H003-ZZA KOE 6.2" 640×240
    SX16H003 KOE 6.2" 640×240
    SX09Q005-ZZA KOE 3.6" 320×240
    SX09Q005 KOE 3.6" 320×240

    We also have other industrial LCD panels, pls contact to us for the further information

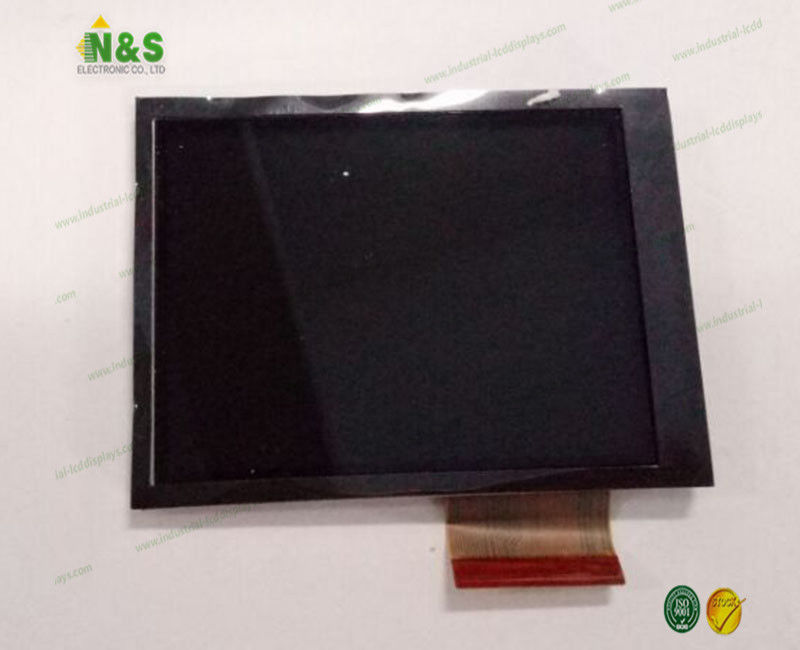

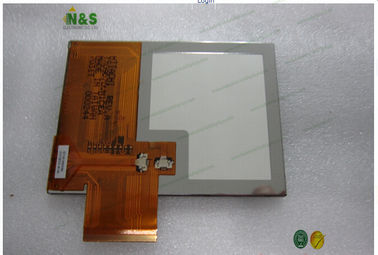

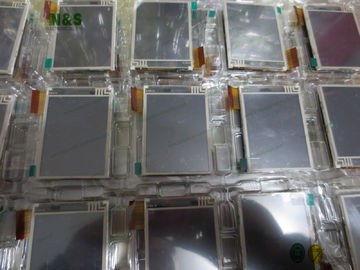

    TX09D80VM3CCA   pictures
