12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO

12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO

    • 12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO
    • 12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO
    • 12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO
  • 12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO

    Product Details:

    Place of Origin: Japan
    Brand Name: CMO
    Certification: ISO9001
    Model Number: G121S1-L01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: G121S1-L01 Panel Brand: CMO
    Descrition: 800×600 Panel Type: A-Si TFT-LCD
    Active Area: 246×184.5 Mm Outline: 260.5×204×12.7 Mm

    G121S1-L01 CMO a-Si TFT-LCD ,12.1 inch, 800×600 for Industrial Application

    G121S1-L01 Basic Information

    Panel Model G121S1-L01
    Panel Brand CMO
    Descrition a-Si TFT-LCD ,12.1 inch, 800×600
    Panel Type a-Si TFT-LCD
    Operating Temperature -30 ~ 70 °C
    Storage Temperature -40 ~ 80 °C







    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box

    4. Carton Box.

    G121S1-L01 Mechanical Features

    Dot Resolution 800(RGB)×600 (SVGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 82 PPI
    Aspect Ratio 4:3 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.1025×0.3075 mm (H×V)
    Pixel Pitch 0.3075×0.3075 mm (H×V)
    Weight 660g (Max.)
    Surface Antiglare (Haze 25%), Hard coating (3H)
    Active Area 246×184.5 mm (H×V)
    Bezel Area 249.0×187.5 mm (H×V)
    Outline Dimension 260.5×204 mm (H×V)
    Outline Depth 12.2±0.5 mm
    Holes & Brackets Side mounting holes (4-M2) on left, right bezel
    Landscape or Portrait Landscape type
    Touch Panel Without





    Our Services

    Payment:

    (1) Bank transfer , Western Union , T/T, Paypal are accepted.

    (2) If any problem of payment, you can contact with us.

    G121S1-L01 Optical Features

    Display Mode Super MVA, Normally Black, Transmissive
    Brightness 450 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Response Time 13/12 (Typ.)(Tr/Td)
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction Symmetry
    White color Chromaticity Wx:0.326; Wy:0.340
    White Variation 1.25/1.40 (Typ./Max.)(5 points)
    Sunlight Readable N



    Packing& Shipping:
    Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
    Guarantee:
    (1) All items will be strictly tested and shipped with strong package.
    (2) We have 3~6months warranty for every item, depend on the different item.
    (3) We will do our best to solve any possible problem for your after sale. Please contact with us.

    G121S1-L01 Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan Yes (U/D, L/R)





    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    F07017-03D Innolux 7.0" 800×480
    85C02007-001 Innolux 2.0" 240×320
    V645HQ1-PE1 Innolux 65" 1920×1080
    V460HK2-PS1 Innolux 46" 1920×1080
    V320BK1-PS5 Innolux 31.5" 1366×768
    V500HK1-PE6 Innolux 50" 1920×1080
    V500HK1-PE1 Innolux 50" 1920×1080
    V420H2-PS2 Rev.C7 Innolux 42" 1920×1080



    We also have other industrial LCD panels, pls contact to us for the further information

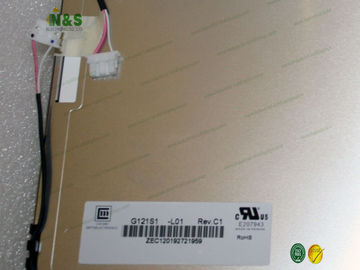

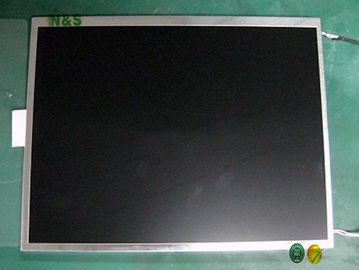

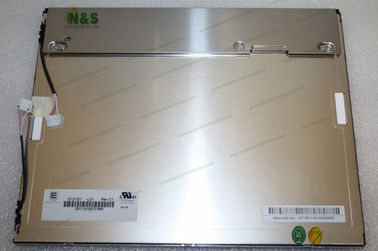

    G121S1-L01  pictures



    12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO12.1 Inch 800×600 Innolux Touch Screen , LCD Display Panel G121S1-L01 CMO
