New / Original Tablet Lcd Screen G185BGE-L01 CHIMEI INNOLUX A-Si TFT-LCD 18.5 Inch

New / Original Tablet Lcd Screen G185BGE-L01 CHIMEI INNOLUX A-Si TFT-LCD 18.5 Inch

    • New / Original Tablet Lcd Screen G185BGE-L01 CHIMEI INNOLUX A-Si TFT-LCD 18.5 Inch
    • New / Original Tablet Lcd Screen G185BGE-L01 CHIMEI INNOLUX A-Si TFT-LCD 18.5 Inch
  • New / Original Tablet Lcd Screen G185BGE-L01 CHIMEI INNOLUX A-Si TFT-LCD 18.5 Inch

    Product Details:

    Place of Origin: Japan
    Brand Name: CHIMEI INNOLUX
    Certification: ISO9001
    Model Number: G185BGE-L01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: G185BGE-L01 Panel Brand: CHIMEI INNOLUX
    Descrition: 1366×768 Panel Type: A-Si TFT-LCD
    Active Area: 409.8×230.4 Mm Outline: 430.37×254.6×16.6 Mm

    New and original G185BGE-L01 CHIMEI INNOLUX a-Si TFT-LCD ,18.5 inch, 1366×768 for 60Hz



    G185BGE-L01 Basic Information

    Panel Model G185BGE-L01
    Panel Brand CHIMEI INNOLUX
    Descrition a-Si TFT-LCD ,18.5 inch, 1366×768
    Panel Type a-Si TFT-LCD
    Operating Temperature 0 ~ 60 °C
    Storage Temperature -20 ~ 60 °C
    Remarks TCO 5.0 Compliance



    Packing& Shipping:
    Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
    Guarantee:
    (1) All items will be strictly tested and shipped with strong package.
    (2) We have 3~6months warranty for every item, depend on the different item.
    (3) We will do our best to solve any possible problem for your after sale. Please contact with us.

    G185BGE-L01 Mechanical Features

    Dot Resolution 1366(RGB)×768 (WXGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 84 PPI
    Aspect Ratio 16:9 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.100×0.300 mm (H×V)
    Pixel Pitch 0.300×0.300 mm (H×V)
    Weight 1.58/1.65Kgs (Typ./Max)
    Surface Antiglare (Haze 25%), Hard coating (3H)
    Active Area 409.8×230.4 mm (H×V)
    Bezel Area 413.4×234.0 mm (H×V)
    Outline Dimension 430.37×254.6 mm (H×V)
    Outline Depth 16.6 (Max.) mm
    Holes & Brackets Side mounting holes (4-M3) on left, right bezel
    Landscape or Portrait Landscape type
    Touch Panel Without



    Packaging & Delivery

    Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

    Delivery Detail: 2-3 days after receipt of payment

    Payment terms: We accept T/T, PayPal, Western Union and others.

    G185BGE-L01 Optical Features

    Display Mode TN, Normally White, Transmissive
    Brightness 300 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
    Display Color 16.7M (8-bit)
    Color Gamut 72% NTSC (CIE1931)
    Response Time 1.5/3.5 (Typ.)(Tr/Td)
    Viewing Angle 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
    White color Chromaticity Wx:0.313; Wy:0.329
    White Variation 1.33 (Max.)(9 points)
    Sunlight Readable N



    Quality Control:

    1. Visual Inspection

    Make sure No damage, No Scratches, No dusty, No light leakage.

    1. Function Inspection

    Make sure all functions are 100% tested ok

    G185BGE-L01 Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan No
    Total Power Consumption 18.2W (Typ.)





    Below are our other LCD panels stock for your easy reference:

    Panel Model Brand Size Resolution
    F04307-06Z Innolux 4.3" 480×800
    CG043JN16 Innolux 4.3" 480×800
    F04008-01U Innolux 4.0" 480×800
    N156BGE-P21 Innolux 15.6" 1366×768
    F04801-01Z Innolux 4.8" 540×960
    N133HSG-D31 Innolux 13.3" 1920×1080
    N133HSE-D31 Innolux 13.3" 1920×1080
    V320BJ7-PE1 Innolux 31.5" 1366×768



    We also have other industrial LCD panels, pls contact to us for the further information

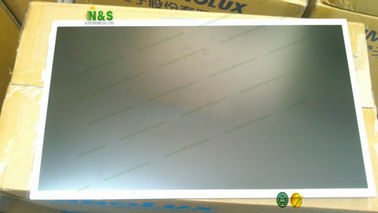

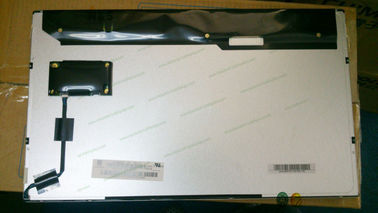

    G185BGE-L01pictures



    New / Original Tablet Lcd Screen G185BGE-L01 CHIMEI INNOLUX A-Si TFT-LCD 18.5 Inch
