G154IJE-L02 Innolux LCD Panel A-Si TFT-LCD 15.4 Inch 1280×800 60Hz 98 PPI Pixel Density

G154IJE-L02 Innolux LCD Panel A-Si TFT-LCD 15.4 Inch 1280×800 60Hz 98 PPI Pixel Density

G154IJE-L02 Innolux LCD Panel A-Si TFT-LCD 15.4 Inch 1280×800 60Hz 98 PPI Pixel Density

Product Details:

Place of Origin: Japan
Brand Name: INNOLUX
Certification: ISO9001
Model Number: G154IJE-L02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Contact Now
Detailed Product Description
Panel Model: G154IJE-L02 Panel Brand: INNOLUX
Descrition: 1280×800 Panel Type: A-Si TFT-LCD
Active Area: 331.2×207 Mm Outline: 352×230×9.2 Mm

G154IJE-L02 INNOLUX a-Si TFT-LCD ,15.4 inch, 1280×800 for 60Hz



G154IJE-L02 Basic Information

Panel Model G154IJE-L02
Panel Brand INNOLUX
Descrition a-Si TFT-LCD ,15.4 inch, 1280×800
Panel Type a-Si TFT-LCD
Operating Temperature -10 ~ 70 °C
Storage Temperature -20 ~ 80 °C





Shipment for the LCD Display Panels:

1. Safe & Professional package for our LCD panels.

2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

4. All our LCD panel will be tested pcs by pcs before been shipped out.

G154IJE-L02 Mechanical Features

Dot Resolution 1280(RGB)×800 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 98 PPI
Aspect Ratio 16:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.08625×0.25875 mm (H×V)
Pixel Pitch 0.25875×0.25875 mm (H×V)
Weight 920g (Typ.)
Surface Antiglare, Hard coating (3H)
Active Area 331.2×207 mm (H×V)
Bezel Area 334.5×210.3 mm (H×V)
Outline Dimension 352×230 mm (H×V)
Outline Depth 8.7±0.5 mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Withou



(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.

(3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.

G154IJE-L02 Optical Features

Display Mode MVA, Normally Black, Transmissive
Brightness 400 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color 262K/16.2M (6-bit / 6-bit + FRC)
Color Gamut 45% NTSC (CIE1931)
Response Time 15/10 (Typ.)(Tr/Td)
Viewing Angle 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.40 (Typ./Max.)(5 points)
Sunlight Readable N





Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

G154IJE-L02 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 19.0W (Max.)



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
F04501-01Z Innolux 4.5" 540×960
V546HK3-PS5 Rev.C1 Innolux 55" 1920×1080
V216B1-PN1 Innolux 21.6" 1366×768
M190A1-P01 Innolux 19.0" 1440×900
V156B2-P02 Innolux 15.6" 1366×768
N154I2-P05 Innolux 15.4" 1280×800
C03024-01Z Innolux 3.0" 960×480(dot)
G121IJ1-P01 Innolux 12.1" 1280×800



We also have other industrial LCD panels, pls contact to us for the further information

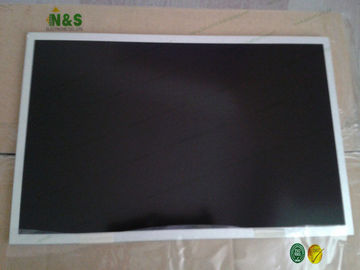

G154IJE-L02  pictures



G154IJE-L02 Innolux LCD Panel A-Si TFT-LCD 15.4 Inch 1280×800 60Hz 98 PPI Pixel DensityG154IJE-L02 Innolux LCD Panel A-Si TFT-LCD 15.4 Inch 1280×800 60Hz 98 PPI Pixel Density
