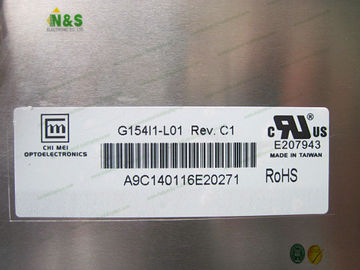

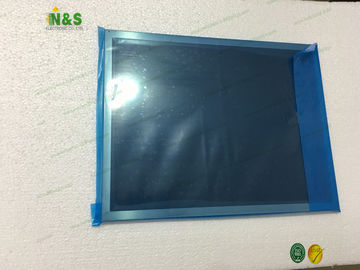

G154I1-L01 CMO A-Si TFT- LCD Display Panel 15.4 Inch 1280×800 Flat Rectangle Display

G154I1-L01 CMO A-Si TFT- LCD Display Panel 15.4 Inch 1280×800 Flat Rectangle Display

    • G154I1-L01 CMO A-Si TFT- LCD Display Panel 15.4 Inch 1280×800 Flat Rectangle Display
    • G154I1-L01 CMO A-Si TFT- LCD Display Panel 15.4 Inch 1280×800 Flat Rectangle Display
  • G154I1-L01 CMO A-Si TFT- LCD Display Panel 15.4 Inch 1280×800 Flat Rectangle Display

    Product Details:

    Place of Origin: Japan
    Brand Name: CMO
    Certification: ISO9001
    Model Number: G154I1-L01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
    Delivery Time: 1-3 Working Days
    Contact Now
    Detailed Product Description
    Panel Model: G154I1-L01 Panel Brand: CMO
    Descrition: 1280×800 Panel Type: A-Si TFT-LCD
    Active Area: 331.2×207 Mm Outline: 352×230×16.3 Mm

    New and original G154I1-L01 CMO a-Si TFT-LCD ,15.4 inch, 1280×800 for Medical Imaging


    G154I1-L01 Basic Information

    Panel Model G154I1-L01
    Panel Brand CMO
    Descrition a-Si TFT-LCD ,15.4 inch, 1280×800
    Panel Type a-Si TFT-LCD
    Operating Temperature -30 ~ 80 °C
    Storage Temperature -40 ~ 85 °C



    Packaging & Delivery
    Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
    Delivery Detail: 2-3 days after receipt of payment
    Payment terms: We accept T/T, PayPal, Western Union and others.



    G154I1-L01 Mechanical Features

    Dot Resolution 1280(RGB)×800 (WXGA)
    Pixel Configuration RGB Vertical Stripe
    Pixel Density 98 PPI
    Aspect Ratio 16:10 (H:V)
    Form Factor Flat Rectangle Display
    Dot Pitch 0.08625×0.25875 mm (H×V)
    Pixel Pitch 0.25875×0.25875 mm (H×V)
    Weight 1.29/1.35Kgs (Typ./Max.)
    Surface Glare (Haze 0%), Hard coating (3H), Antireflection
    Active Area 331.2×207 mm (H×V)
    Bezel Area 334.5×210.3 mm (H×V)
    Outline Dimension 352×230 mm (H×V)
    Outline Depth 15.8±0.5 mm
    Holes & Brackets Side mounting holes (4-M3) on left, right bezel
    Landscape or Portrait Landscape type
    Touch Panel Without



    After-sale Services:
    1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
    2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
    3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
    We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.



    G154I1-L01 Optical Features

    Display Mode TN, Normally White, Transmissive
    Brightness 700 cd/m² (Typ.)
    Contrast Ratio 700 : 1 (Typ.) (Transmissive)
    Display Color 262K (6-bit)
    Response Time 5/11 (Typ.)(Tr/Td)
    Viewing Angle 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    White Variation 1.25/1.40 (Typ./Max.)(5 points)
    Sunlight Readable Y


    We can do for You:

    1. Quality Guarantee:

    100% original new Hard Disk for you.
    2.Fast reply:
    Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
    3.Delivery Guarantee:
    Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
    4.After-Sale Service:
    Professional support team to provide effective service, we are young and full of passion!
    5. Professional acknowledgement of hard disks to provide customers with effective advice.
    We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
    6. Competitive quotation:
    Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

    G154I1-L01 Electronics Feature

    Vertical Frequency 60Hz
    Reverse Scan Yes (180°)
