Product Details:
|
Series: | NL8060BC26-28 | Screen Size: | 10.4 Inch |
---|---|---|---|
Touchscreen: | Without | Voltage Supply: | 3.3V |
Arrangement: | RGB Vertical Stripe | Good View At: | Symmetry |
High Light: | nec lcd touch screen,nec tft lcd |

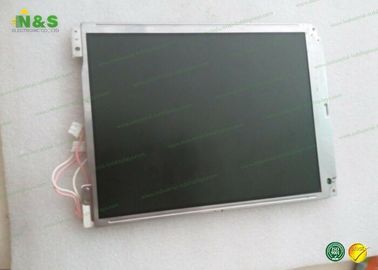

Normally Black NL8060BC26-28 NEC LCD Panel 10.4 inch for Industrial Application
NL8060BC26-28 Information
Panel Model | NL8060BC26-28 |
---|---|
Panel Brand | NEC |
Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
Panel Type | a-Si TFT-LCD |
Display Mode | SA-SFT, Normally Black, Transmissive |
Active Area | 211.2×158.4 mm |
Outline | 243×185.1 mm |
Surface | Clear, Hard coating (3H) |
Contrast Ratio | 700:1 (Typ.) |
Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40% |
Response Time | 25/25 (Typ.)(Tr/Td) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
Frequency | 60Hz |
Lamp Type | 2 pcs CCFL Without Driver |
Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins |
Input Voltage | 3.3V (Typ.) |
Panel Model | NL8060BC26-28 |
---|---|
Panel Brand | NEC |
Descrition | a-Si TFT-LCD ,10.4 inch, 800×600 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | -10 ~ 70 °C |
Storage Temperature | -20 ~ 80 °C |
Vibration Resistance | 2.0G (19.6 m/s²) |
