Product Details:
|
| Panel Size: | 21.5 Inch | Resolution: | 1920×1080 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Contrast Ratio: | 1000:1 (Typ.) |
| Frequency: | 60Hz | Input Voltage: | 5.0V (Typ.) |
| High Light: | tft lcd display,lcd display panel |
||

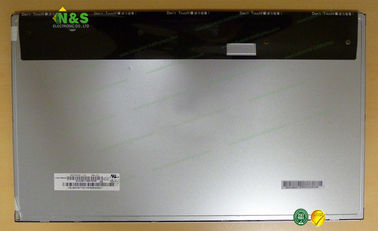

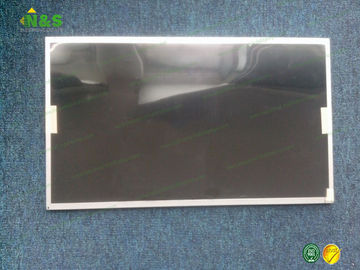

M215HGE-L21 21.5 inch INNOLUX high resolution 1920×1080 Normally White with 476.64×268.11 mm Active Area
M215HGE-L21 Basic Information
| Panel Model | M215HGE-L21 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,21.5 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Energy Star 7.0 Compliance |
M215HGE-L21 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 102 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.08275×0.24825 mm (H×V) |
| Pixel Pitch | 0.24825×0.24825 mm (H×V) |
| Weight | 1.91/2.10Kgs (Typ./Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 476.64×268.11 mm (H×V) |
| Bezel Area | 479.8×271.3 mm (H×V) |
| Outline Dimension | 495.6×292.2 mm (H×V) |
| Outline Depth | 8.3/11.5 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on up, down bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
