Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 14.0 Inch |
|---|---|---|---|
| Resolution: | 1600×900 | Display Mode: | TN, Normally White, Transmissive |
| Outline: | 320.4×187.1×3.6 Mm | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | tft lcd display,innolux lcd screen |
||

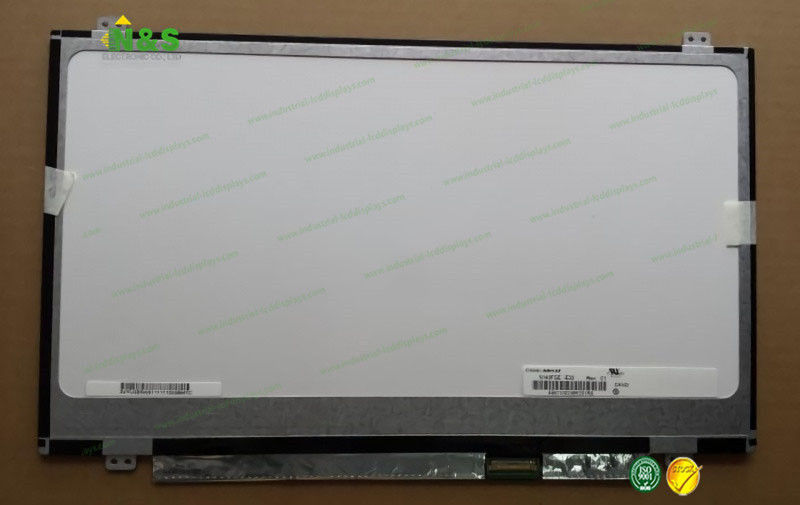

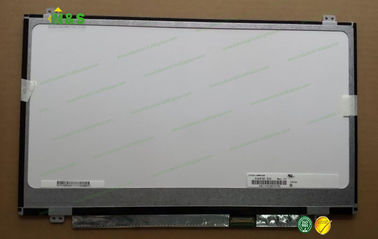

14.0 inch Normally White N140FGE-E32 TFT LCD Module 1600×900 resolution Outline 320.4×187.1×3.6 mm
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Excellent service on before-sale, on-sale and after-sale
1. We provide one year warranty, will provide the after-sale service for you if any quality problems.
2.Your inquiry related to our products or prices will be replied in 24 hours.
3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V650HP1-PS6 Rev.C1 | Innolux | 65" | 1920×1080 |
| M220ZGE-P02 | Innolux | 22.0" | 1680×1050 |
| V420HJ2-P01 | Innolux | 42" | 1920×1080 |
| F05501-01Z | Innolux | 5.5" | 720×1280 |
| EE101IA-01D | Innolux | 10.1" | 1280×800 |
| HE070IA-02E | Innolux | 7.0" | 1280×800 |
| HE101NA-02C | Innolux | 10.1" | 1280×800 |
| ZE090NA-01B | Innolux | 9.0" | 1280×800 |
| HE080NA-04I | Innolux | 8.0" | 1024×768 |
| HE070NA-13C | Innolux | 7.0" | 1024×600 |
| HE070NA-13B | Innolux | 7.0" | 1024×600 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
N140FGE-E32 Basic Information
| Panel Model | N140FGE-E32 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,14.0 inch, 1600×900 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N140FGE-E32 Mechanical Features
| Dot Resolution | 1600(RGB)×900 (HD+) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 131 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0645×0.1935 mm (H×V) |
| Pixel Pitch | 0.1935×0.1935 mm (H×V) |
| Weight | 280/290g (Typ.Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 309.6×174.15 mm (H×V) |
| Outline Dimension | 320.4×187.1 mm (H×V) |
| Outline Depth | 3.6 (Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N140FGE-E32 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
