Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 17.3 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Display Surface: | Antiglare, Hard Coating (3H) |
| Contrast Ratio: | 650:1 (Typ.) | Frequency: | 60Hz |
| High Light: | tft lcd display,innolux lcd screen |
||

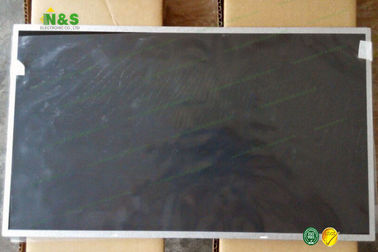

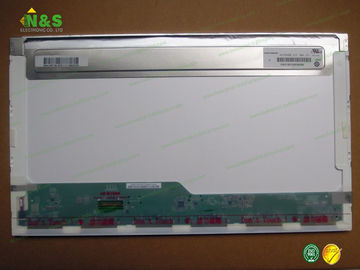

Normally White N173HGE-L11 TFT LCD Module 1920×1080 resolution 17.3 inch for Industrial Application panel
N173HGE-L11 Basic Information
| Panel Model | N173HGE-L11 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,17.3 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N173HGE-L11 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 127 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0663×0.1989 mm (H×V) |
| Pixel Pitch | 0.1989×0.1989 mm (H×V) |
| Weight | 585/600g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 381.888×214.812 mm (H×V) |
| Bezel Area | 386.18×218.85 mm (H×V) |
| Outline Dimension | 398.1×232.8 mm (H×V) |
| Outline Depth | 5.7/6.0 (Typ./Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (8-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N173HGE-L11 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 650 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
To get the latest prices, pls feel free to contact us.
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CD040JN13 | Innolux | 4.0" | 480×800 |
| HE070IA-04M | Innolux | 7.0" | 800×1280 |
| M195FGE-P03 | Innolux | 19.5" | 1600×900 |
| M195FGE-P02 | Innolux | 19.5" | 1600×900 |
| HB050NA-07A | Innolux | 5.0" | 640×960 |
| F04013-04Z | Innolux | 4.0" | 480×800 |
| F05005-04U | Innolux | 5.0" | 480×854 |
| F05005-03U | Innolux | 5.0" | 480×854 |
| F05005-02U | Innolux | 5.0" | 480×854 |
| F05005-01U | Innolux | 5.0" | 480×854 |
| PP050IC-01B | Innolux | 5.0" | 720×1280 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
