Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 21.5 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Contrast Ratio: | 1000:1 (Typ.) |
| Outline: | 495.6×292.2×12 Mm | ||
| High Light: | tft lcd display,lcd display panel |
||

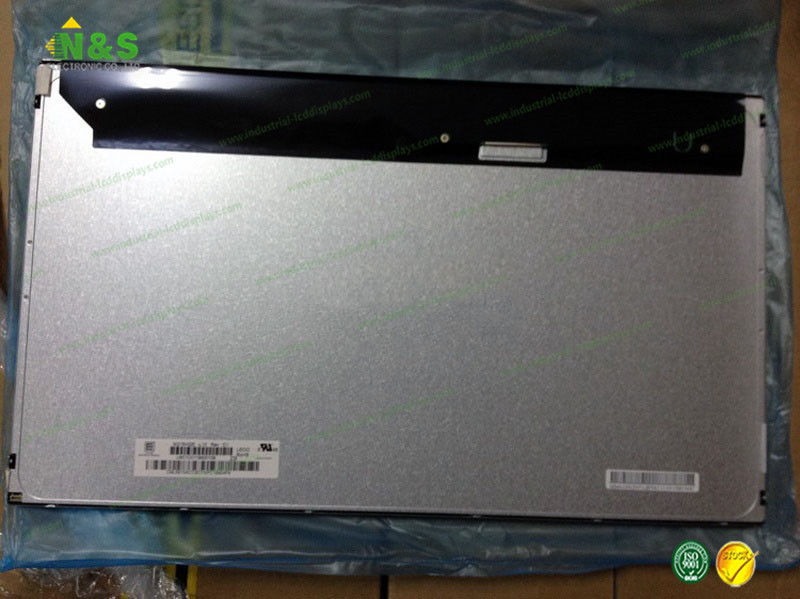

Normally White M215HGE-L10 TFT LCD Module INNOLUX 21.5 inch Surface Antiglare (Haze 25%), Hard coating (3H)
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
M215HGE-L10 Basic Information
| Panel Model | M215HGE-L10 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,21.5 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | TC0’5.0 Compliance |
M215HGE-L10 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 102 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.08275×0.24825 mm (H×V) |
| Pixel Pitch | 0.24825×0.24825 mm (H×V) |
| Weight | 2.04/2.12Kgs (Typ./Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 476.64×268.11 mm (H×V) |
| Bezel Area | 479.8×271.3 mm (H×V) |
| Outline Dimension | 495.6×292.2 mm (H×V) |
| Outline Depth | 11.5/12.0 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M215HGE-L10 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.43 (Max.)(9 points) |
| Sunlight Readable | N |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V236BJ1-P03 | Innolux | 23.6" | 1366×768 |
| PH035NA-01B | Innolux | 3.5" | 320×480 |
| PH040NA-01B | Innolux | 4.0" | 480×800 |
| PH045NA-01A | Innolux | 4.5" | 480×854 |
| PH045NA-01B | Innolux | 4.5" | 480×854 |
| PB050IA-01A | Innolux | 5.0" | 540×960 |
| ZE065NA-01B | Innolux | 6.5" | 800×480 |
| ZE050NA-08D | Innolux | 5.0" | 640×480 |
| N070ICN-PB1 | Innolux | 7.0" | 800×1280 |
| N156BGE-P41 | Innolux | 15.6" | 1366×768 |
| V500HJ1-PE8 | Innolux | 50" | 1920×1080 |
| V400HJ6-PE1 | Innolux | 40" | 1920×1080 |
