Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 11.6 Inch |
|---|---|---|---|
| Resolution: | 1920×1080 | Frequency: | 60Hz |
| Outline: | 278×166×3.07 Mm | Surface: | Antiglare, Hard Coating (3H) |
| High Light: | tft lcd display,innolux lcd screen |
||

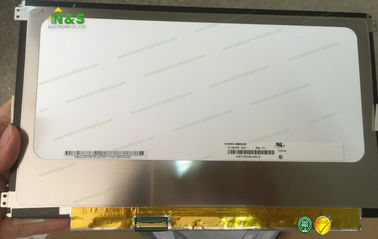

N116HSE-EA1 TFT LCD Module INNOLUX 11.6 inch for 256.32×144.18 mm Active Area Surface Antiglare, Hard coating (3H)
N116HSE-EA1 Basic Information
| Panel Model | N116HSE-EA1 |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,11.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N116HSE-EA1 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 190 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0445×0.1335 mm (H×V) |
| Pixel Pitch | 0.1335×0.1335 mm (H×V) |
| Weight | 195/210g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 256.32×144.18 mm (H×V) |
| Bezel Area | 258.32×146.18 mm (H×V) |
| Outline Dimension | 278×166 mm (H×V) |
| Outline Depth | 2.82/3.07mm (Typ./Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N116HSE-EA1 Optical Features
| Display Mode | AAS, Normally Black, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
