Product Details:
|
| Panel Size: | 14.0 Inch | Resolution: | 1366×768 |
|---|---|---|---|
| Surface: | Antiglare, Hard Coating (3H) | Outline: | 320.4×205.1×3 Mm |
| Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
| High Light: | lcd display panel,innolux lcd screen |
||

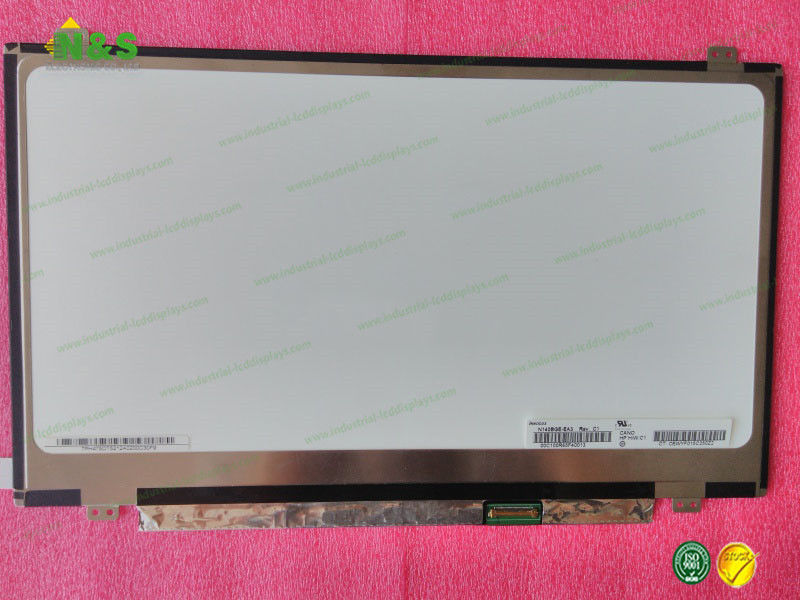

N140BGE-EA3 INNOLUX 14.0 inch1366×768 resolution with 309.399×173.952 mm Active Area Contrast Ratio 500:1 (Typ.)
N140BGE-EA3 Basic Information
| Panel Model | N140BGE-EA3 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,14.0 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 50 °C |
| Remarks | eDP1.2; sucessor model:N140BGA-EA3 |
N140BGE-EA3 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 112 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0755×0.2265 mm (H×V) |
| Pixel Pitch | 0.2265×0.2265 mm (H×V) |
| Weight | 260/270g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 309.399×173.952 mm (H×V) |
| Outline Dimension | 320.4×205.1 mm (H×V) |
| Outline Depth | 3.0 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N140BGE-EA3 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P070ACZ-3Z1 | Innolux | 7.0" | 600×1024 |
| F03511-02U | Innolux | 3.5" | 320×480 |
| F05007-01Z | Innolux | 5.0" | 720×1280 |
| EE101IA-01C | Innolux | 10.1" | 1280×800 |
| EB070NA-09A | Innolux | 7.0" | 800×480 |
| V500DK2-PS1 | Innolux | 50" | 3840×2160 |
| 86A04310-00 | Innolux | 4.3" | 480×272 |
| HE070IA-04R | Innolux | 7.0" | 800×1280 |
| HE070IA-04E | Innolux | 7.0" | 800×1280 |
| HE080IA-01E | Innolux | 8.0" | 1024×768 |
| M200FGE-P02 | Innolux | 20.0" | 1600×900 |
