Product Details:
|
| Panel Size: | 15.6 Inch | Resolution: | 1920×1080 |
|---|---|---|---|
| Active Area: | 344.16×193.59 Mm | Outline: | 359.5×223.8×3.2 Mm |
| Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
| High Light: | lcd display panel,innolux lcd screen |
||

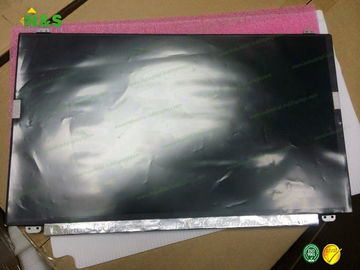

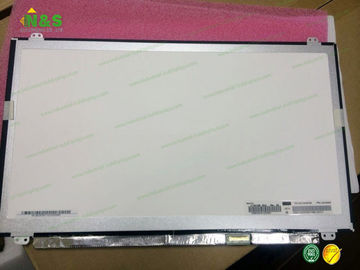

Normally White N156HGE-EA2 INNOLUX 15.6 inch 1920×1080 Surface Antiglare (Haze 24%), Hard coating (3H)
N156HGE-EA2 Basic Information
| Panel Model | N156HGE-EA2 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N156HGE-EA2 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch | 0.17925×0.17925 mm (H×V) |
| Weight | 350/360g (Typ./Max.) |
| Surface | Antiglare (Haze 24%), Hard coating (3H) |
| Active Area | 344.16×193.59 mm (H×V) |
| Bezel Area | 347.36×196.59 mm (H×V) |
| Outline Dimension | 359.5×223.8 mm (H×V) |
| Outline Depth | 3.02/3.2 (Typ./Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N156HGE-EA2 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 300 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 60% NTSC (CIE1931) |
| Response Time | 3/8 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Min.)(5/13 points) |
| Sunlight Readable | N |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
After-sale Services:
1)warranty for 1 year, 7 days return for the non-working items, except broken, crashed cargo (Buyer pay for return shipping fee).
2)Please make sure the item is compatible for your model before ordering. No return for incompatible issues.
3)When you receive the item,if you find the box is break and the goods break. Please take photo about the goods and refuse accepting the goods .Please contact me and sent photo of product to me as soon as possible .I will complaint the delivery company.
We ensure offer great products, services and the most favorable prices. And we have a long-term and reliable supply. If you have any questions, suggestions or need any assistance, we are always here to give you quick response.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P070ACZ-3Z1 | Innolux | 7.0" | 600×1024 |
| F03511-02U | Innolux | 3.5" | 320×480 |
| F05007-01Z | Innolux | 5.0" | 720×1280 |
| EE101IA-01C | Innolux | 10.1" | 1280×800 |
| EB070NA-09A | Innolux | 7.0" | 800×480 |
| V500DK2-PS1 | Innolux | 50" | 3840×2160 |
| 86A04310-00 | Innolux | 4.3" | 480×272 |
| HE070IA-04R | Innolux | 7.0" | 800×1280 |
| HE070IA-04E | Innolux | 7.0" | 800×1280 |
| HE080IA-01E | Innolux | 8.0" | 1024×768 |
| M200FGE-P02 | Innolux | 20.0" | 1600×900 |
