Product Details:
|
| Panel Size: | 23.8 Inch | Resolution: | 1920×1080 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Contrast Ratio: | 1000:1 (Typ.) |
| Response Time: | 14/11 (Typ.)(Tr/Td) | Lamp Type: | WLED |
| High Light: | tft lcd display,lcd display panel |
||

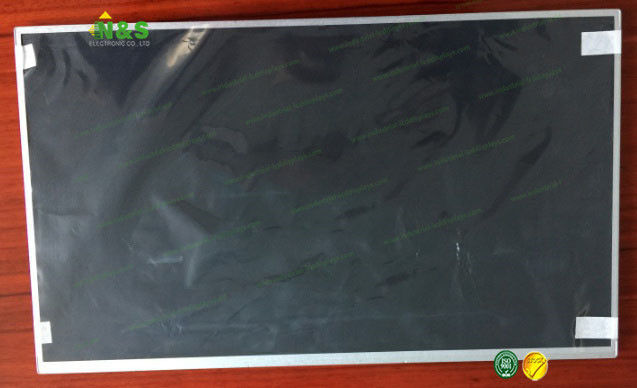

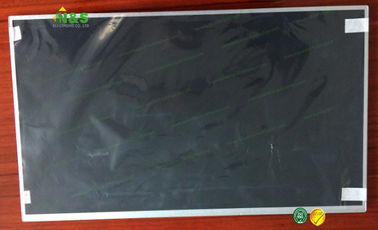

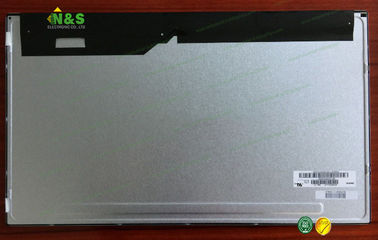

Normally Black 23.8 Inch M238HCJ-L31 Innolux Industrial LCD Displays with 527.04×296.46 mm Active Area
M238HCJ-L31 Basic Information
| Panel Model | M238HCJ-L31 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,23.8 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Energy Star 7.0 Compliance; Reverse |
M238HCJ-L31 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 92 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0915×0.2745 mm (H×V) |
| Pixel Pitch | 0.2745×0.2745 mm (H×V) |
| Active Area | 527.04×296.46 mm (H×V) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F050A13-603 | Innolux | 5.0" | 720×1280 |
| V500DK2-QS1 | Innolux | 50" | 3840×2160 |
| M270HGE-P01 | Innolux | 27.0" | 1920×1080 |
| V850DK1-QS1 Rev.C1 | Innolux | 85" | 3840×2160 |
| V580DK1-QS2 | Innolux | 58" | 3840×2160 |
| CP047BN01 | Innolux | 4.7" | 720×1280 |
| PH040NA-01C | Innolux | 4.0" | 480×800 |
| HE080IA-06B | Innolux | 8.0" | 800×1280 |
| V580DK2-QS1 | Innolux | 58" | 3840×2160 |
| P101JEA-3Z1 | Innolux | 10.1" | 1920×1200 |
| P101DBZ-3Z1 | Innolux | 10.1" | 800×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
M238HCJ-L31 Optical Features
| Display Mode | Super MVA, Normally Black, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 72% NTSC (CIE1931) |
| Response Time | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33 (Max.)(9 points) |
| Sunlight Readable | N |
