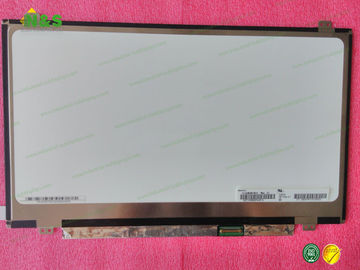

14.0 Inch Tft Lcd Screen , N140BGA-EA3 INNOLUX 1366×768 Resolution Lcd Display Panel

14.0 Inch Tft Lcd Screen , N140BGA-EA3 INNOLUX 1366×768 Resolution Lcd Display Panel

14.0 Inch Tft Lcd Screen , N140BGA-EA3 INNOLUX 1366×768 Resolution Lcd Display Panel

Product Details:

Place of Origin: KOREA
Brand Name: INNOLUX
Certification: ISO9001
Model Number: N140BGA-EA3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Delivery Time: 1-3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500PCS/DAY
Contact Now
Detailed Product Description
Panel Size: 14.0 Inch Resolution: 1366×768
Contrast Ratio: 500:1 (Typ.) Surface: Antiglare, Hard Coating (3H)
Frequency: 60Hz

Normally White 14.0 inch N140BGA-EA3 INNOLUX 1366×768 resolution Surface Antiglare, Hard coating (3H)



N140BGA-EA3 Basic Information

Panel Model N140BGA-EA3
Panel Brand INNOLUX
Descrition a-Si TFT-LCD ,14.0 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks eDP1.2


N140BGA-EA3 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 112 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0755×0.2265 mm (H×V)
Pixel Pitch 0.2265×0.2265 mm (H×V)
Weight 255/270g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 309.399×173.952 mm (H×V)
Outline Dimension 320.4×187.1 mm (H×V)
Outline Depth 2.81/3.0 (Typ./Max.) mm
Holes & Brackets Face mounting holes (8 pcs) on up, down slugs
Landscape or Portrait Landscape type
Touch Panel Without


N140BGA-EA3 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 220 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 3/7 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.54 (Max.)(5/13 points)
Sunlight Readable N


Our Advantage

As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels &Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.

Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
V650HP1-PS6 Rev.C1 Innolux 65" 1920×1080
M220ZGE-P02 Innolux 22.0" 1680×1050
V420HJ2-P01 Innolux 42" 1920×1080
F05501-01Z Innolux 5.5" 720×1280
EE101IA-01D Innolux 10.1" 1280×800
HE070IA-02E Innolux 7.0" 1280×800
HE101NA-02C Innolux 10.1" 1280×800
ZE090NA-01B Innolux 9.0" 1280×800
HE080NA-04I Innolux 8.0" 1024×768
HE070NA-13C Innolux 7.0" 1024×600
HE070NA-13B Innolux 7.0" 1024×600
