Product Details:
|
| Panel Size: | 15.6 Inch | Resolution: | 1920×1080 |
|---|---|---|---|
| Active Area: | 344.16×193.59 Mm | Outline: | 359.5×206.5×3.2 Mm |
| Surface: | Antiglare, Hard Coating (3H) | Contrast Ratio: | 500:1 (Typ.) |
| High Light: | tft lcd display,innolux lcd screen |
||

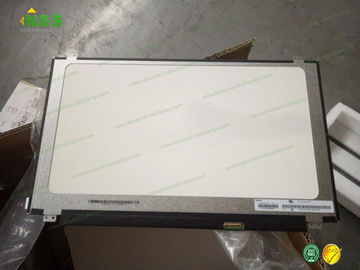

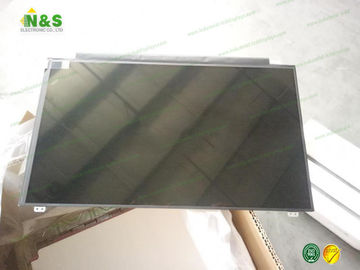

Normally White 15.6 Inch N156HGA-EAB INNOLUX Industrial LCD Displays 1920×1080 resolution Surface Antiglare
N156HGA-EAB Basic Information
| Panel Model | N156HGA-EAB |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N156HGA-EAB Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch | 0.17925×0.17925 mm (H×V) |
| Weight | 345/360g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 344.16×193.59 mm (H×V) |
| Outline Dimension | 359.5×206.5 mm (H×V) |
| Outline Depth | 3.01/3.2 (Typ./Max.) mm |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N156HGA-EAB Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 46% NTSC (CIE1931) |
| Response Time | 3/8 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| V650HP1-PS6 Rev.C1 | Innolux | 65" | 1920×1080 |
| M220ZGE-P02 | Innolux | 22.0" | 1680×1050 |
| V420HJ2-P01 | Innolux | 42" | 1920×1080 |
| F05501-01Z | Innolux | 5.5" | 720×1280 |
| EE101IA-01D | Innolux | 10.1" | 1280×800 |
| HE070IA-02E | Innolux | 7.0" | 1280×800 |
| HE101NA-02C | Innolux | 10.1" | 1280×800 |
| ZE090NA-01B | Innolux | 9.0" | 1280×800 |
| HE080NA-04I | Innolux | 8.0" | 1024×768 |
| HE070NA-13C | Innolux | 7.0" | 1024×600 |
| HE070NA-13B | Innolux | 7.0" | 1024×600 |
