Product Details:
|
| Panel Type: | A-Si TFT-LCD | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Resolution: | 480×234 | Outline: | 164.9×100 Mm |
| Active Area: | 154.08×86.58 Mm | Contrast Ratio: | 300:1 (Typ.) |
| Display Colors: | Full Color | ||
| High Light: | tft lcd display,innolux lcd screen |
||

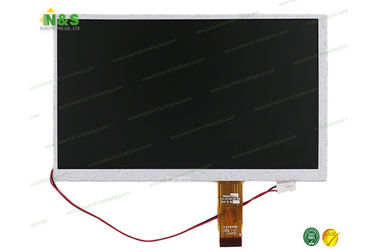

Normally White AT070TN07 V.D 7.0 inch 480×234 resolution Surface Antiglare Active Area 154.08×86.58 mm
AT070TN07 V.D Basic Information
| Panel Model | AT070TN07 V.D |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,7.0 inch, 480×234 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -30 ~ 85 °C |
AT070TN07 V.D Mechanical Features
| Dot Resolution | 480(RGB)×234 |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.107×0.370 mm (H×V) |
| Pixel Pitch | 0.321×0.370 mm (H×V) |
| Weight | 166g (Typ.) |
| Surface | Antiglare |
| Active Area | 154.08×86.58 mm (H×V) |
| Bezel Area | 156.5×89.00 mm (H×V) |
| Outline Dimension | 164.9×100 mm (H×V) |
| Outline Depth | 5.7±0.3 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
AT070TN07 V.D Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Display Color | Full color () |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
