Product Details:
|
| Panel Size: | 5.0 Inch | Resolution: | 800×480 |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 108×64.8 Mm |
| Outline: | 120.7×76.3×3.3 Mm | Contrast Ratio: | 500:1 (Typ.) |
| Frequency: | 60Hz | ||
| High Light: | tft lcd display,innolux lcd screen |
||

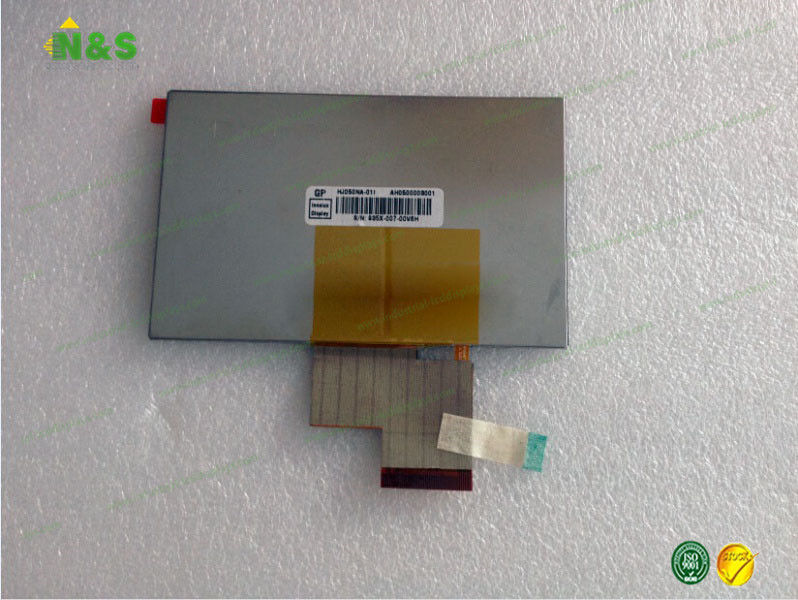

INNOLUX HJ050NA-01I 5.0 inch Active Area 108×64.8 mm Contrast Ratio 500:1 (Typ.) Lamp Type WLED Without Driver
Our Advantage
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.
Q6: Can you customize according to our designs and put our logo on the products?
A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AT070TN90 | Innolux | 7.0" | 800×480 |
| PH030NA-04A | Innolux | 3.0" | 240×400 |
| EE090NA-01C | Innolux | 9.0" | 1280×800 |
| EE080NA-06A | Innolux | 8.0" | 800×600 |
| AT080TN60 | Innolux | 8.0" | 800×480 |
| EE070NA-01L | Innolux | 7.0" | 1024×600 |
| EE070NA-01D | Innolux | 7.0" | 1024×600 |
| AT070TN90 V.1 | Innolux | 7.0" | 800×480 |
| AT070TN00 V.1 | Innolux | 7.0" | 480×234 |
| AT050TN30 | Innolux | 5.0" | 480×272 |
| LW700AT6005 | Innolux | 7.0" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Easy-to-install console, Open Frame chassis-mount display
• Slim dimensions enable better enclosure designs
• Multiple mounting options (100mm VESA mount and side brackets)
• All steel construction provides rugged frame for public use environments
• Two independent touch points (with Windows 7 OS)
• Improved power efficiency and reduced consumption
• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals
HJ050NA-01I Basic Information
| Panel Model | HJ050NA-01I |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,5.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
HJ050NA-01I Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 188 PPI |
| Aspect Ratio | 15:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.045×0.135 mm (H×V) |
| Pixel Pitch | 0.135×0.135 mm (H×V) |
| Weight | 59g (Typ.) |
| Surface | Antiglare |
| Active Area | 108×64.8 mm (H×V) |
| Outline Dimension | 120.7×76.3 mm (H×V) |
| Outline Depth | 3.1±0.2 mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
HJ050NA-01I Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 8-bit) |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
