Product Details:
|
| Panel Model: | DJ070NA-03J | Panel Size: | 7.0 Inch |
|---|---|---|---|
| Active Area: | 154.08×85.92 Mm | Outline: | 164.9×100×6 Mm |
| Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
| High Light: | tft lcd display,innolux lcd screen |
||

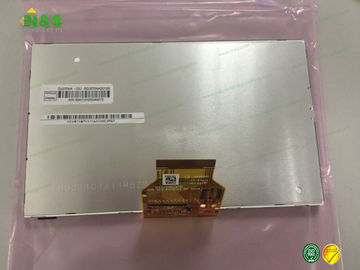

New and original DJ070NA-03J 7.0 inch LCD Display Panel Module 800×480 Lamp Type WLED Without Driver
DJ070NA-03J Basic Information
| Panel Model | DJ070NA-03J |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,7.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -30 ~ 85 °C |
| Storage Temperature | -40 ~ 90 °C |
DJ070NA-03J Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 134 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0642×0.1790 mm (H×V) |
| Pixel Pitch | 0.1926×0.1790 mm (H×V) |
| Weight | 130g (Typ.) |
| Surface | Antiglare |
| Active Area | 154.08×85.92 mm (H×V) |
| Bezel Area | 157.08×89.92 mm (H×V) |
| Outline Dimension | 164.9×100 mm (H×V) |
| Outline Depth | 5.7±0.3 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
DJ070NA-03J Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 750 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
