Product Details:
|
| Panel Size: | 9.0 Inch | Resolution: | 800×480 |
|---|---|---|---|
| Outline: | 211.1×126.5 Mm | Surface: | Antiglare |
| Contrast Ratio: | 500:1 (Typ.) | ||
| High Light: | tft lcd display,lcd display panel |
||

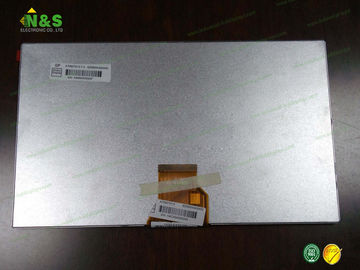

Normally White AT090TN12 V.3 a-Si TFT-LCD Module 9.0 inch, 800×480 Normally White Surface Antiglare
AT090TN12 V.3 Basic Information
| Panel Model | AT090TN12 V.3 |
| Panel Brand | INNOLUX |
| Descrition | a-Si TFT-LCD ,9.0 inch, 800×480 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | 2 in 1 FPC, FPC length 80.0mm |
AT090TN12 V.3 Mechanical Features
| Dot Resolution | 800(RGB)×480 (WVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 104 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0825×0.2327 mm (H×V) |
| Pixel Pitch | 0.2475×0.2327 mm (H×V) |
| Weight | 253g (Typ.) |
| Surface | Antiglare |
| Active Area | 198×111.696 mm (H×V) |
| Bezel Area | 201.0×114.7 mm (H×V) |
| Outline Dimension | 211.1×126.5 mm (H×V) |
| Outline Depth | 5.9±0.3 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
AT090TN12 V.3 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CD040JN13 | Innolux | 4.0" | 480×800 |
| HE070IA-04M | Innolux | 7.0" | 800×1280 |
| M195FGE-P03 | Innolux | 19.5" | 1600×900 |
| M195FGE-P02 | Innolux | 19.5" | 1600×900 |
| HB050NA-07A | Innolux | 5.0" | 640×960 |
| F04013-04Z | Innolux | 4.0" | 480×800 |
| F05005-04U | Innolux | 5.0" | 480×854 |
| F05005-03U | Innolux | 5.0" | 480×854 |
| F05005-02U | Innolux | 5.0" | 480×854 |
| F05005-01U | Innolux | 5.0" | 480×854 |
| PP050IC-01B | Innolux | 5.0" | 720×1280 |
