Product Details:
|
| Resolution: | 1024×768 | Panel Size: | 8.0 Inch |
|---|---|---|---|
| Outline: | 183×141 Mm | Surface: | Hard Coating |
| Response Time: | 6/14 (Typ.)(Tr/Td) | Frequency: | 60Hz |
| High Light: | tft lcd display,lcd display panel |
||

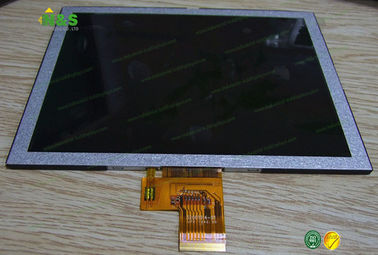

New and original EJ080NA-04C 8.0 inch 1024×768 Active Area 162.048×121.536 mm Frequency 60Hz
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Packing & Delivery for our LCD Screen Panel Replacements:
EJ080NA-04C Basic Information
| Panel Model | EJ080NA-04C |
| Panel Brand | CHIMEI INNOLUX |
| Descrition | a-Si TFT-LCD ,8.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -10 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
EJ080NA-04C Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 160 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05275×0.15825 mm (H×V) |
| Pixel Pitch | 0.15825×0.15825 mm (H×V) |
| Weight | TBD |
| Surface | Hard coating |
| Active Area | 162.048×121.536 mm (H×V) |
| Bezel Area | 165.2×124.7 mm (H×V) |
| Outline Dimension | 183×141 mm (H×V) |
| Outline Depth | 3.4 mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
EJ080NA-04C Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 6/14 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/75/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 4:30 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
