Product Details:
|
Panel Type: | A-Si TFT-LCD | Panel Size: | 11.6 Inch |
---|---|---|---|
Resolution: | 1920×1080 | Active Area: | 256.32×144.18 Mm |
Outline: | 268×168×3 Mm | Frequency: | 60Hz |
High Light: | tft lcd display,lcd display panel |

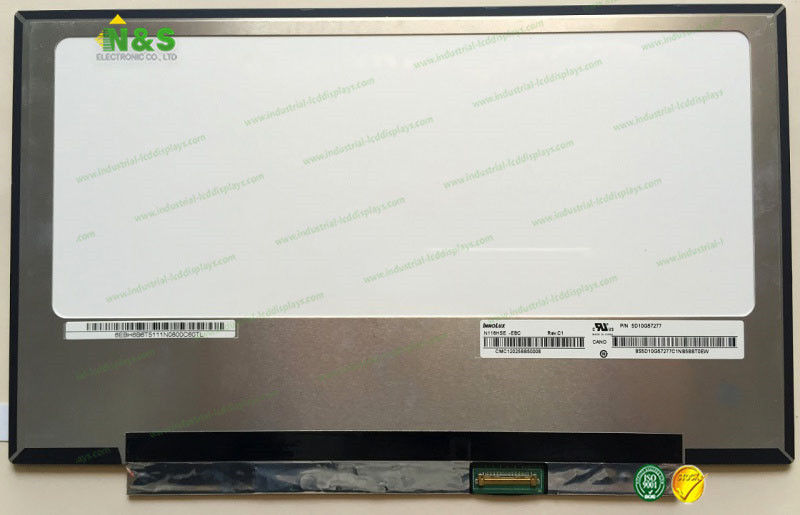

Normally Black N116HSE-EBC 11.6 inch TFT LCD Screen Module 1920×1080 resolution Active Area 256.32×144.18 mm
N116HSE-EBC Basic Information
Panel Model | N116HSE-EBC |
Panel Brand | INNOLUX |
Descrition | a-Si TFT-LCD ,11.6 inch, 1920×1080 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | 0 ~ 50 °C |
Storage Temperature | -20 ~ 60 °C |
N116HSE-EBC Mechanical Features
Dot Resolution | 1920(RGB)×1080 (FHD) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 190 PPI |
Aspect Ratio | 16:9 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.0445×0.1335 mm (H×V) |
Pixel Pitch | 0.1335×0.1335 mm (H×V) |
Weight | 185/200g (Typ./Max.) |
Surface | Glare (Haze 0%), Hard coating (3H) |
Active Area | 256.32×144.18 mm (H×V) |
Outline Dimension | 268×168 mm (H×V) |
Outline Depth | 2.75/3.0 (Typ./Max.) mm |
Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
Holes & Brackets | Without |
Landscape or Portrait | Landscape type |
N116HSE-EBC Optical Features
Display Mode | AAS, Normally Black, Transmissive |
Brightness | 300 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
Display Color | 16.7M (8-bit) |
Color Gamut | 50% NTSC (CIE1931) |
Response Time | 14/11 (Typ.)(Tr/Td) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | Symmetry |
White color Chromaticity | Wx:0.313; Wy:0.329 |
White Variation | 1.25 (Typ.)(5 points) |
Sunlight Readable | N |
